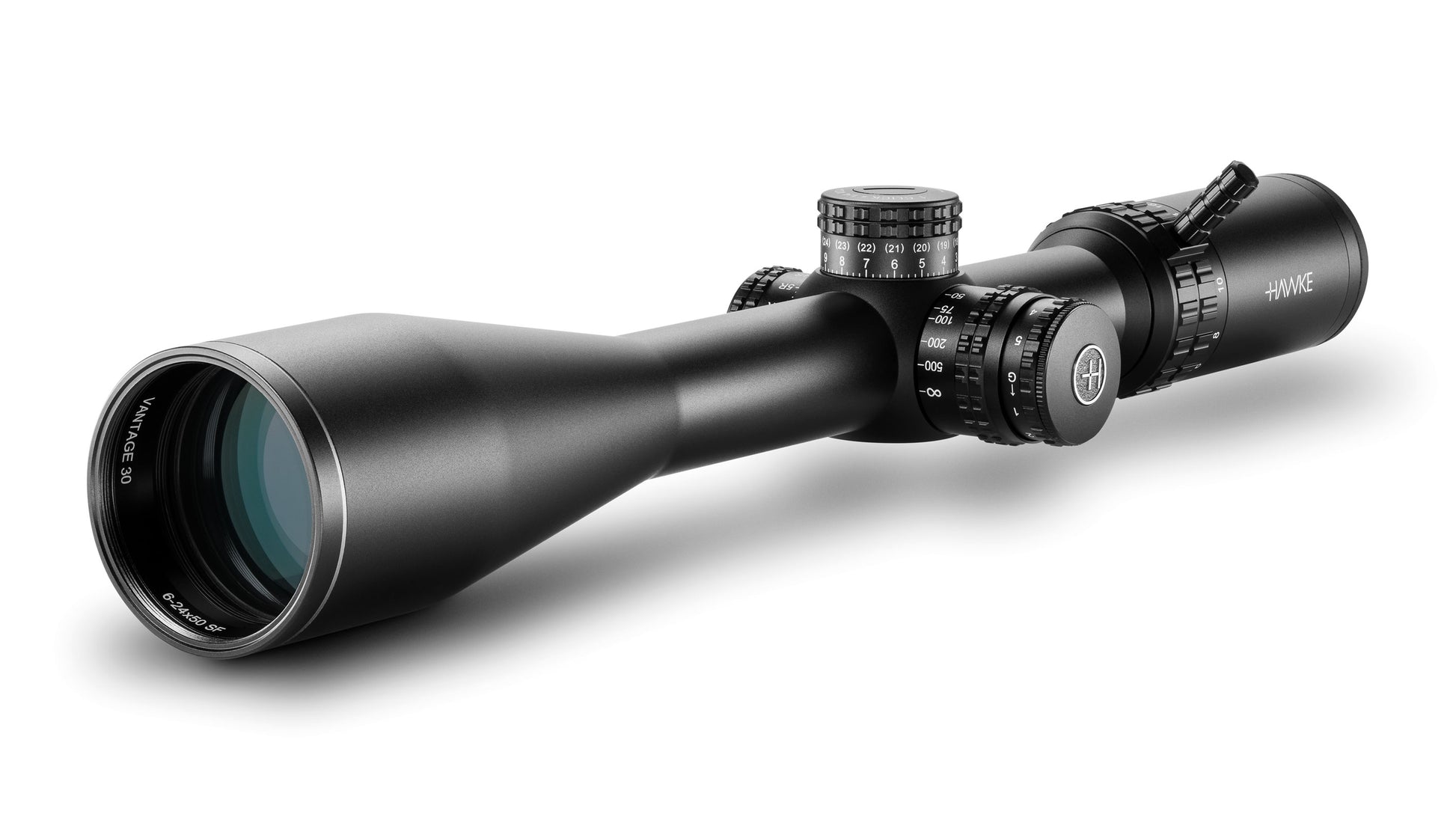

Vantage HD 30 6-24x50 SF LR2 Dot

Vantage HD 30 6-24x50 SF LR2 Dot

Regular price £299.00 GBP
Regular price Sale price £299.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 30mm Monotube Chassis
  • Exposed, Locking Elevation & Windage
  • Illuminated Glass Reticle
  • 11 Layer Fully Multi-Coated Lenses
  • 3.5 Inch Eye Relief

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

LR2 Dot (20x)

A variant of the classic L4 reticle, the LR2 FD uses a more open outer post design to keep more of the target visible while aiming and offers extra aim points for holdover. The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. The thick outer posts make visibility easy when hunting in low-light conditions. A fine upper post doesn't obstruct your view of the target.

Extra holdover aim points are included on the fine lower post to give graduation and accuracy when shooting at longer distances. The LR2 FD reticle is the second generation of LR Dot style reticles from Hawke and has updated aim point subtensions and BDC to complement modern centerfire cartridges and muzzle speeds.

Magnification
6 - 24x
Reticle
LR2 Dot (20x)
Optical System
System H2
Objective Lens
50mm
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels (Red & Green)

Field of View
20.7 - 5.4ft @100yds
6.9 - 1.8m @100m
Field of View
4 - 1°
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.33 - 0.08″
8.3 - 2.1mm
Click Value
1/4 MOA
Elevation Turret Clicks (max)
70 MOA
Windage Turret Clicks (max)
70 MOA

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 11 Layers

Length
15.4in
390mm
Weight
26.3oz
745g

Turret Type (Elevation)
Exposed, Locking, Resettable

Turret Type (Windage)
Exposed, Locking, Resettable
Illumination Control
Stepped Rheostat
