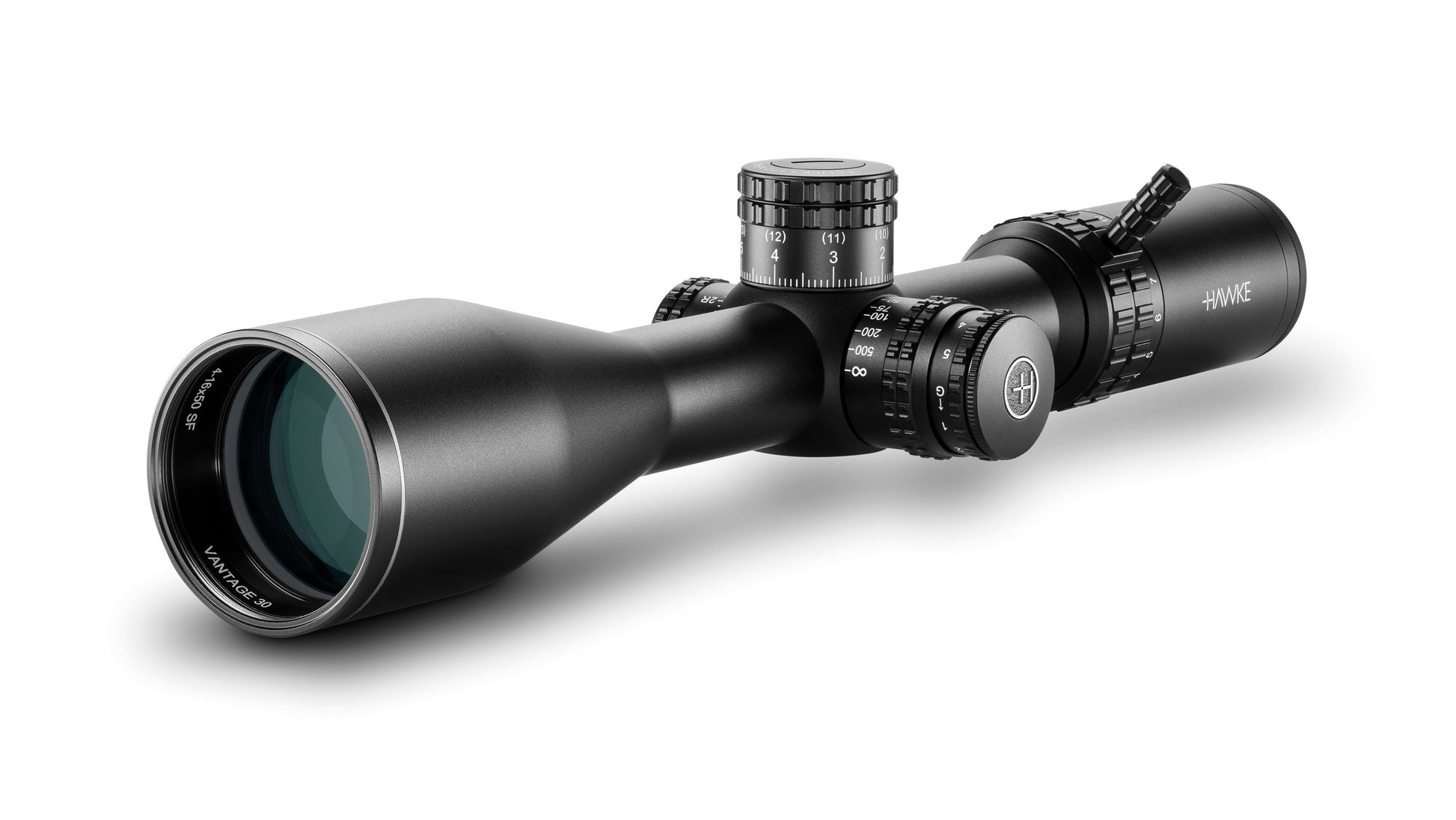

Vantage HD 30 4-16x50 SF Mil Pro II

Vantage HD 30 4-16x50 SF Mil Pro II

Regular price £279.00 GBP
Regular price Sale price £279.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 30mm Monotube Chassis
  • Zero-Stop Elevation Turret & Exposed, Locking Windage
  • Illuminated Glass Reticle
  • 11 Layer Fully Multi-Coated Lenses
  • 3.5 Inch Eye Relief

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Mil Pro II (10x) Reticle

Accurate mil spacing on 10x magnification. With half Mil spaced markings extending out to 10 Mil of holdover, the Mil Pro (10x) is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

When on 10x magnification, the Mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD.

Magnification
4 - 16x
Reticle
Mil Pro II (10x)
Optical System
System H2
Objective Lens
50mm
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels (Red & Green)

Field of View
28.8 - 7.8ft @100yds
9.6 - 2.6m @100m
Field of View
5.5 - 1.5°
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.49 - 0.12″
12.5 - 3.1mm
Click Value
1/10 MRAD
Elevation Turret Clicks (max)
28 MRAD
Windage Turret Clicks (max)
28 MRAD

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 11 Layers

Length
13.7in
347mm
Weight
26.1oz
740g

Turret Type (Elevation)
Zero Stop, Exposed, Resettable

Turret Type (Windage)
Exposed, Locking, Resettable
Illumination Control
Stepped Rheostat
