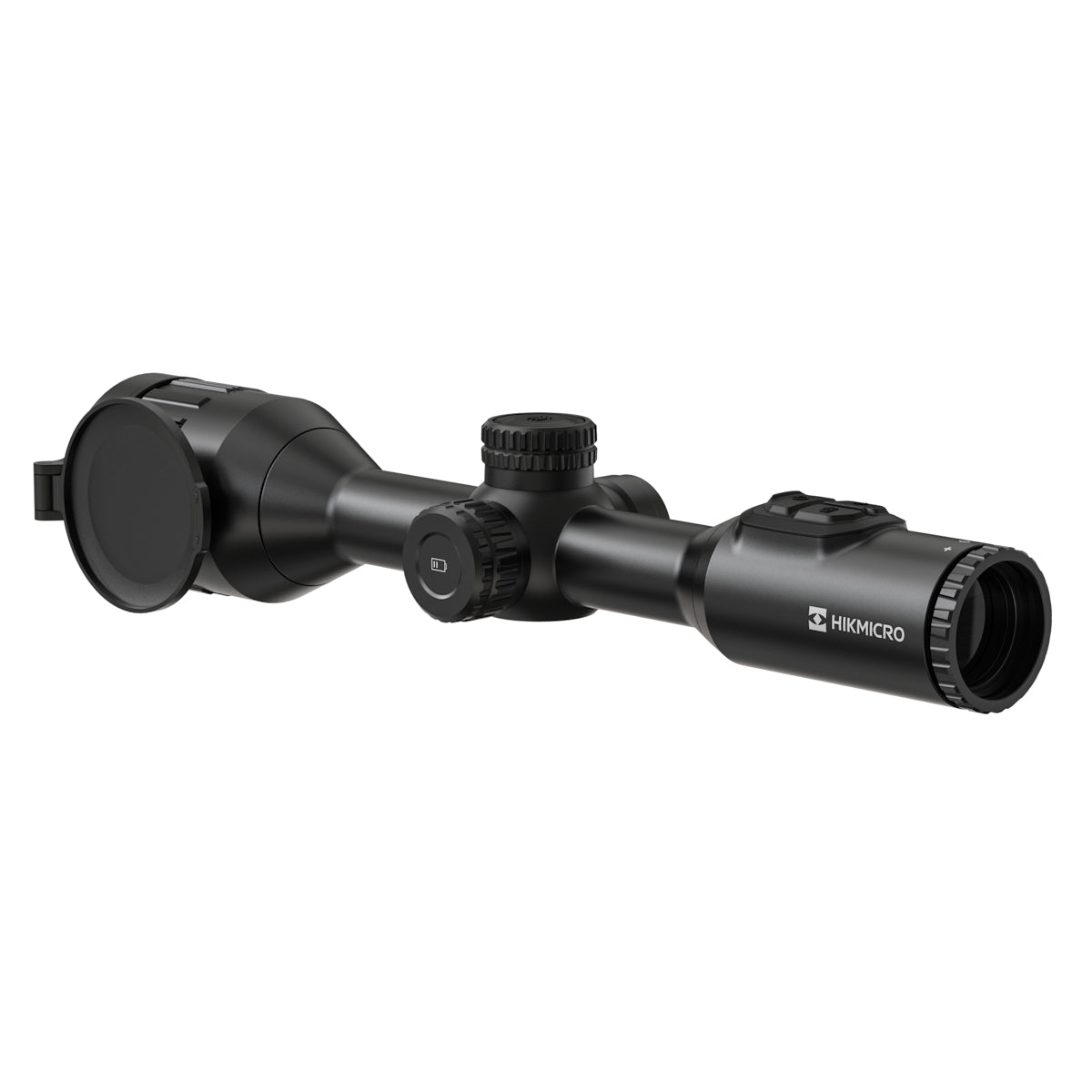

HIKMICRO Stellar 3.0 SQ50L LRF
HIKMICRO Stellar 3.0 SQ50L LRF
HIKMICRO STELLAR SQ50L 3.0 Thermal Scope is equipped with a 640 × 512 @12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless system (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03” OLED larger display, SQ50L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.
Description
The HIKMICRO Stellar 3.0 utilises industry leading sensor technology and innovative software to create the ultimate thermal riflescope.
The Stellar 3.0 introduces many innovations to enhance your hunting experience including shutterless technology and the integrated Laser Rage Finder (LRF) which allows you to access HIKMICRO’s advanced ballistic calculator while retaining the traditional appearance of your scope.
Built around HIKMICRO’s latest generation 640x512px, Sub 15mK NETD sensors, the Stellar 3.0 is capable of delivering an unbelievably detailed image. Not only does this help you to positively identify animals but also gives you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.
The 1000m LRF discreetly fits inside the front objective lens which allows you to accurately judge the distance to your target without compromising the traditional look of your rifle. The built-in ballistic calculator displays the holdover point on your reticle, making it possible to accurately adjust for shooting at different distances, even in total darkness.
The new viewfinder screen delivers an immersive experience, with an exceptionally wide field of view. You can customise the display to give you all the information you need in a rounded viewing area that will feel familiar to anyone who has used a traditional optical scope.
In addition to the latest hardware, HIKMICRO are committed to developing advanced software to enhance your hunting experience. The Stellar 3.0 is loaded with new technology like Image Pro 2.0 which uses intelligent algorithms to build extra detail to the image.
Another unique technology which is set to revolutionise your thermal shooting experience is shutterless technology. The shutter is used in traditional thermal devices to control image noise. It is a physical process which requires your image to freeze for a few seconds to complete. During that interruption it is impossible to take your shot. To avoid this problem, HIKMICRO have developed software which has replaced the physical shutter and removed this problem.
Powered by a combination of internal batteries and a removable 18650, the Stellar 3.0 delivers an impressive run time of 9 Hours. The display also shows you the status of the internal battery and the external battery separately so it is easy to manage your power consumption.
Specs
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Maximum Resolution: 640 × 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C, F# = 1.0)
Optics
- Lens (Focal Length): 50 mm, F1.0
- Focus Mode: Focus Ring
- Detection Range: 2600 m
- Minimum Focusing Distance: 5 m
- Magnification: 3.6× to 26.6× (supports 1× step value of continuous zooming)
- Field of View (H×V): 8.8° × 7.0° / 15.4 m × 12.3 m @100 m
Image Display
- Display: 2560 × 2560, 1.03-inch OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 45 mm
- Diopter Adjustment Range: -5D to 3D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
System Features
- Video Recording: On-board video recording
- Snapshot Capture: Yes
- Audio Recording: Yes
- Recoil-activated Recording: Yes
- Standby Mode: Yes
- Storage: Built-in 64 GB EMMC
- Picture-in-Picture (PIP): Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Zeroing Profiles: 5 profiles
- Maximum Recoil: 1000 g/0.4 ms
- Freeze Zeroing: Yes
- Local Album: Yes
Power Supply
- Battery Type: Two internal rechargeable Lithium batteries, one external replaceable and rechargeable 18650 battery
- Battery Life: 9 hours of continuous operation (@-20°C, with Zoom Pro and LRF on)
- Power Supply: 5V DC/2A, USB Type-C interface (supports QC3.0)
General Specifications
- Mounting: Standard 30 mm
- Protection Level: IP67
- Dimensions: 422.5 mm × 88.4 mm × 74.5 mm
- Weight: 860 g (without external battery)
- Operating Temperature: -30°C to 55°C (-22°F to 131°F)
- Center Height: 36 mm
Laser Rangefinder (LRF)
- LRF Module: Integrated into lens
- Laser Safety Class: Class 1
- Wavelength: 905 nm
- Maximum Measuring Range: 1000 m
- Measurement Accuracy: ±1 m
- Minimum Measuring Range: 10 m
