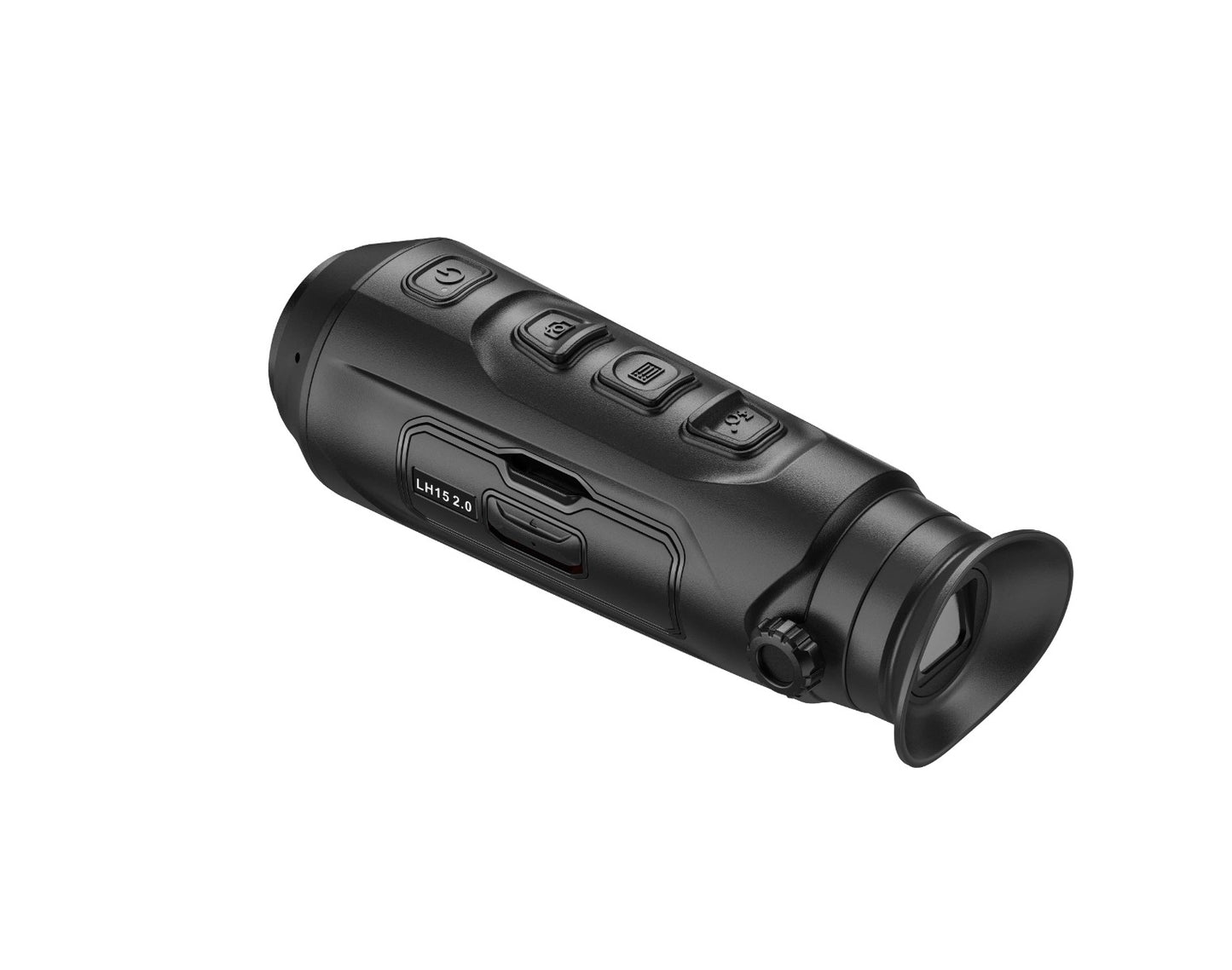

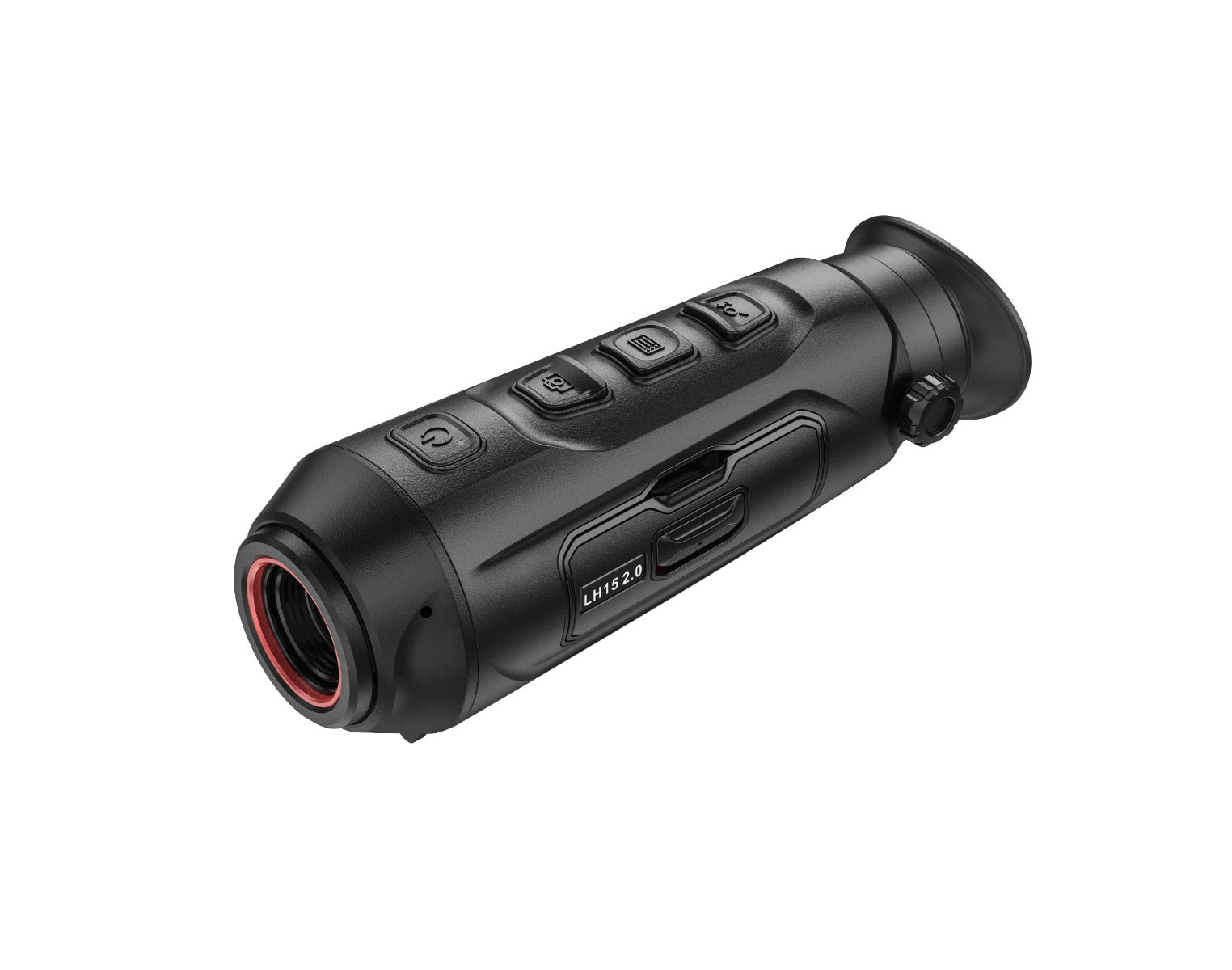

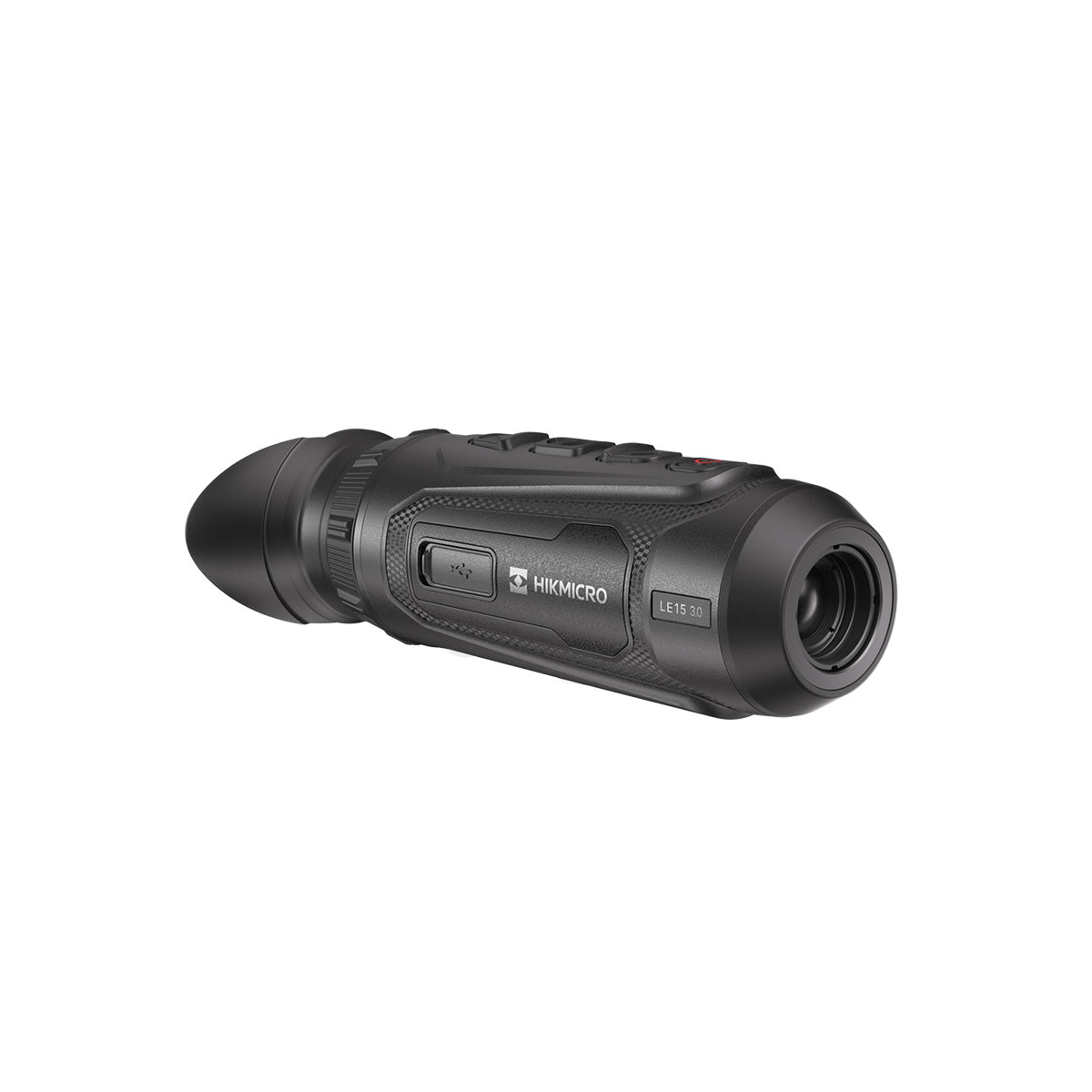

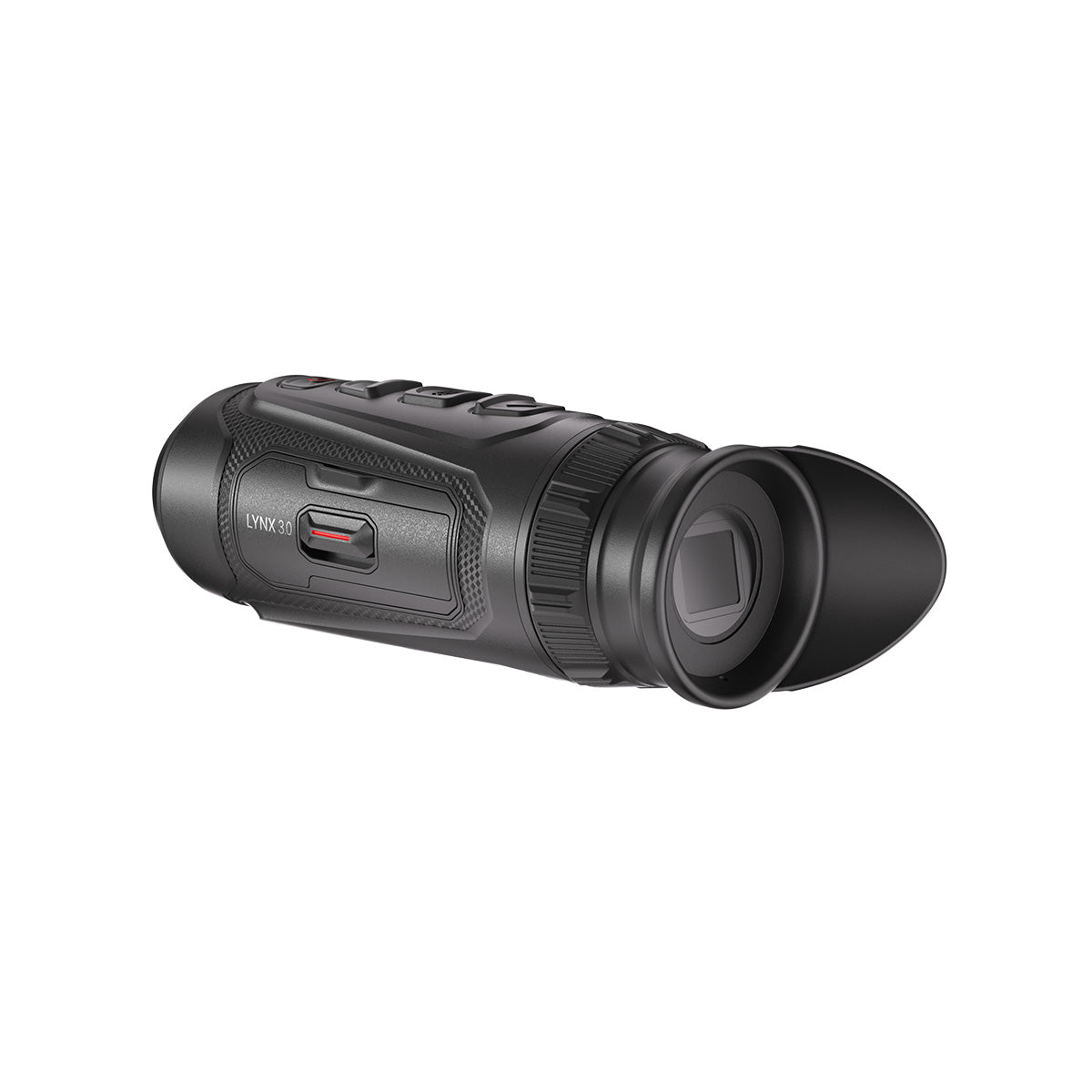

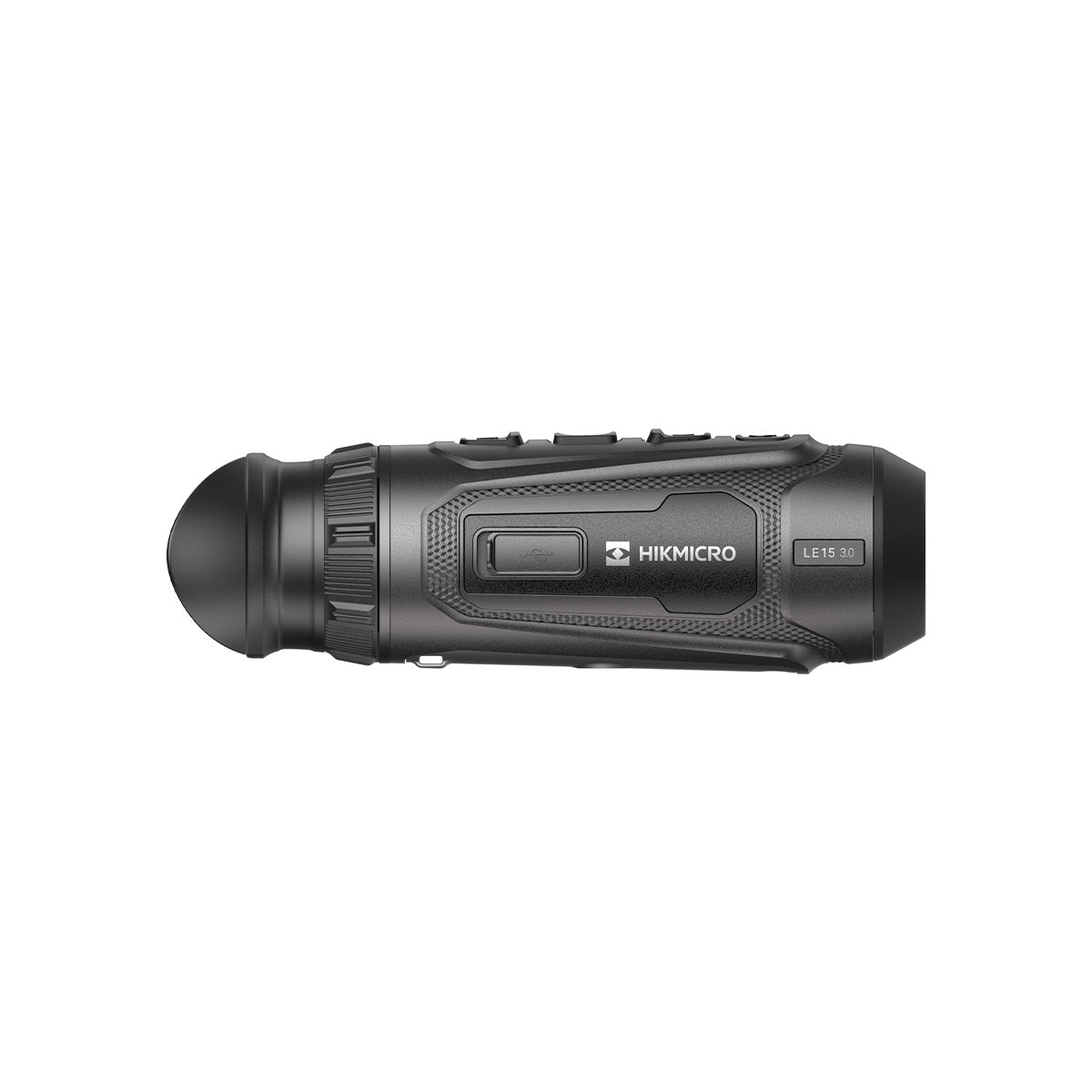

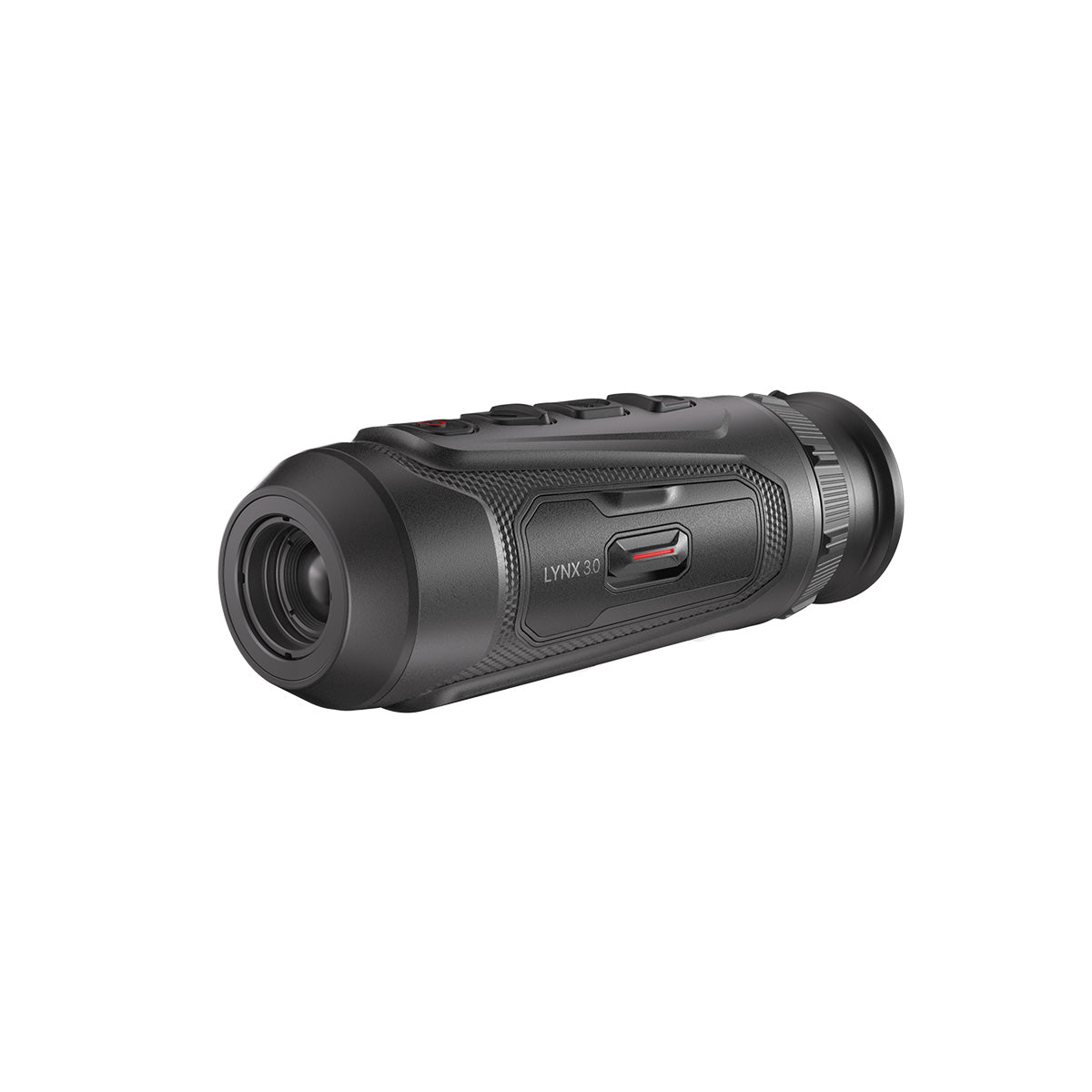

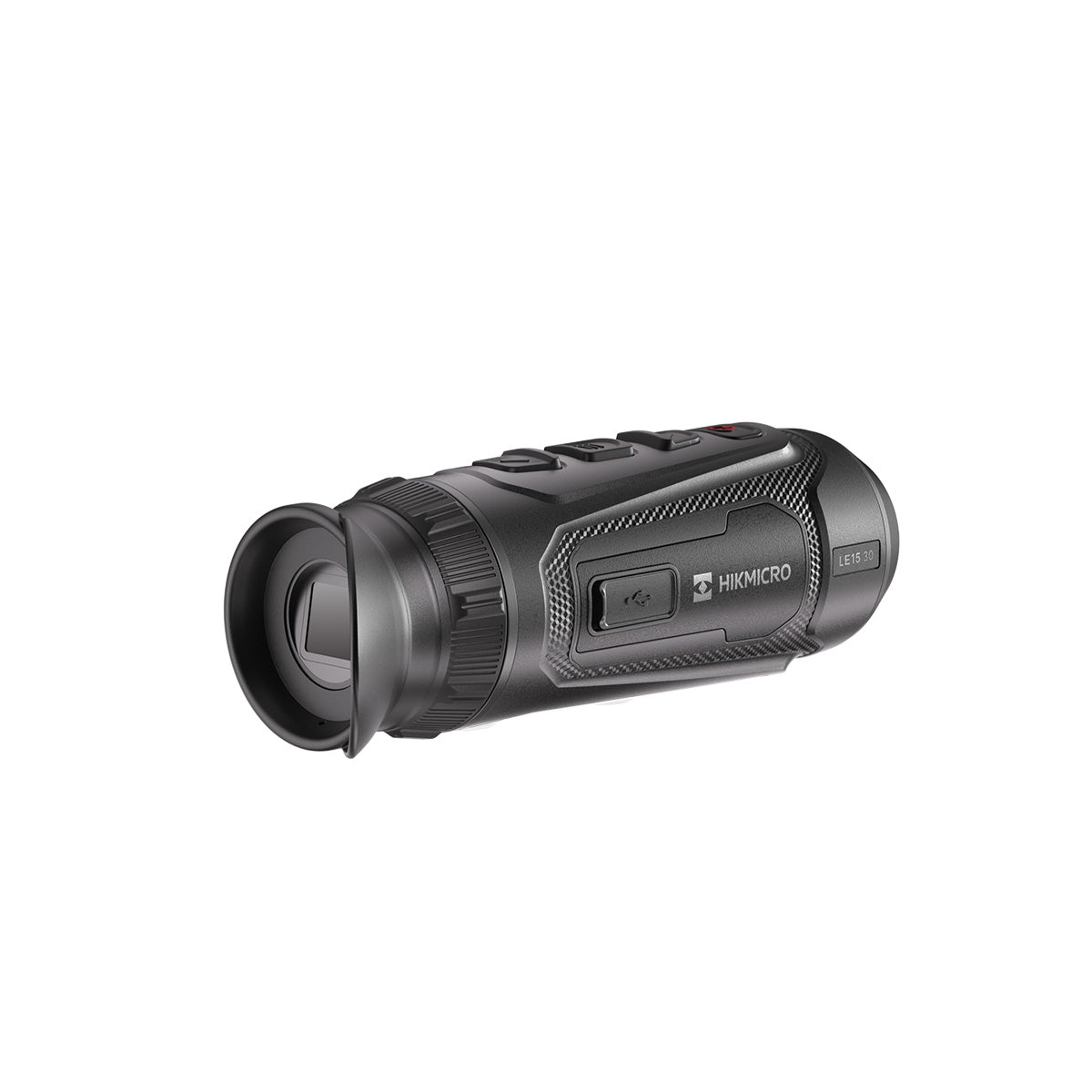

HIKMicro Lynx Pro 3.0 15mm

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LH15 is a professional-grade thermal monocular engineered for reliability and image precision. Featuring a 320x240 thermal detector and a 15mm F1.0 lens, it offers 2.2x base magnification, an 11.7° field of view, and a detection range up to 750 metres, making it ideal for forested or mid-range applications.

Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LH15 delivers outstanding visual clarity and contrast across dynamic environments. Its HSIS shutterless imaging system ensures smooth, silent image refresh , critical for operations requiring discretion and consistency in performance.

Compact and resilient, the LH15 weighs 296.5 grams and includes a replaceable 18650 battery with up to 5 hours’ runtime at -20°C. Designed to perform under pressure, it offers dependable, high-definition thermal imaging wherever your mission takes you.

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LH15 is a professional-grade thermal monocular engineered for reliability and image precision. Featuring a 320x240 thermal detector and a 15mm F1.0 lens, it offers 2.2x base magnification, an 11.7° field of view, and a detection range up to 750 metres, making it ideal for forested or mid-range applications.

Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LH15 delivers outstanding visual clarity and contrast across dynamic environments. Its HSIS shutterless imaging system ensures smooth, silent image refresh , critical for operations requiring discretion and consistency in performance.

Compact and resilient, the LH15 weighs 296.5 grams and includes a replaceable 18650 battery with up to 5 hours’ runtime at -20°C. Designed to perform under pressure, it offers dependable, high-definition thermal imaging wherever your mission takes you.

• Image Sensor - VOx Uncooled Focal Plane Arrays
• Max. Resolution - 320 × 240
• Frame Rate - 50 Hz
• Pixel Interval - 12 μm
• Response Waveband - 8 μm to 14 μm
• NETD - Less than 18 mK (@25°C), F#=1.0
• Lens (Focal Length) - 15 mm, F1.0
• Focus Mode - Focus Free
• Min. Focusing Distance - 7 m
• Magnification2.2 × - 17.6 × (8×)
• Field of View (H × V), Degrees / m @100 m - 11.7° × 8.8° / 20.5 m × 15.4 m
• Detection Range - 750 m
• Display - 1024 × 768, 0.39 inch, AMOLED
• Contrast Adjustment - Yes
• Brightness Adjustment - Yes
• Palettes - Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil - 6 mm
• Eye Relief - 20 mm
• Diopter (Range) - -5 D to +3 D
• Tone Adjustment - Cold, Warm
• Zoom Pro - Yes
• HSIS (HIKMICRO Shutterless Image System) - Yes
• Image Pro 3.0 - Yes
• Sync Pro - Yes
• Battery Type - Replaceable and rechargeable 18650 battery
• Work Temperature / Humidity - From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
• Protection Level - IP67
• Weight - 296.5 g

• 256×192 thermal detector with NETD < 20 mK
• 15mm F1.0 lens with 750m detection range
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Image System (HSIS)
• 0.39” 1024×768 AMOLED display
• Up to 5.5 hours’ operation at -20°C
• Lightweight, pocket-sized 296.5g design
