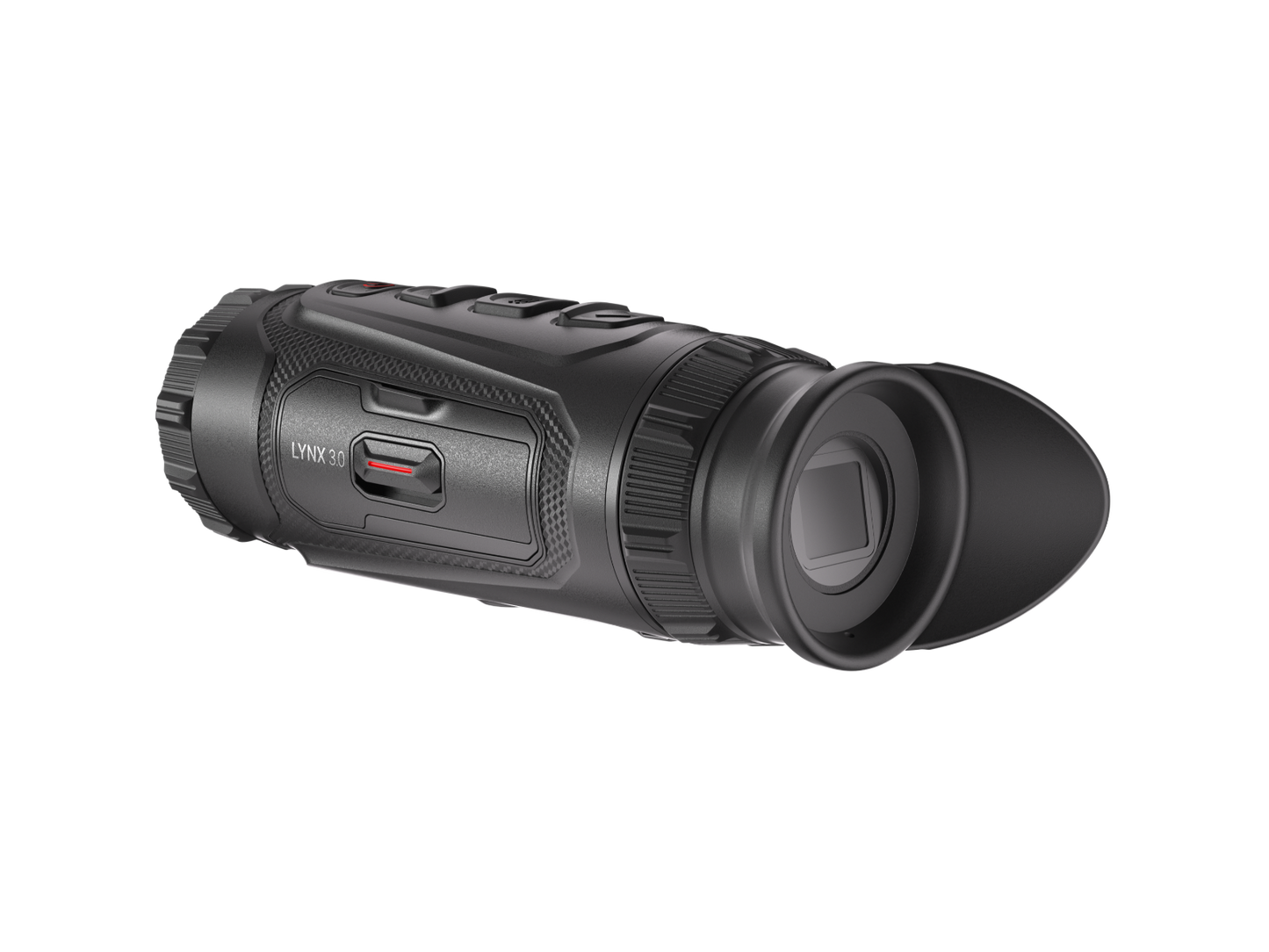

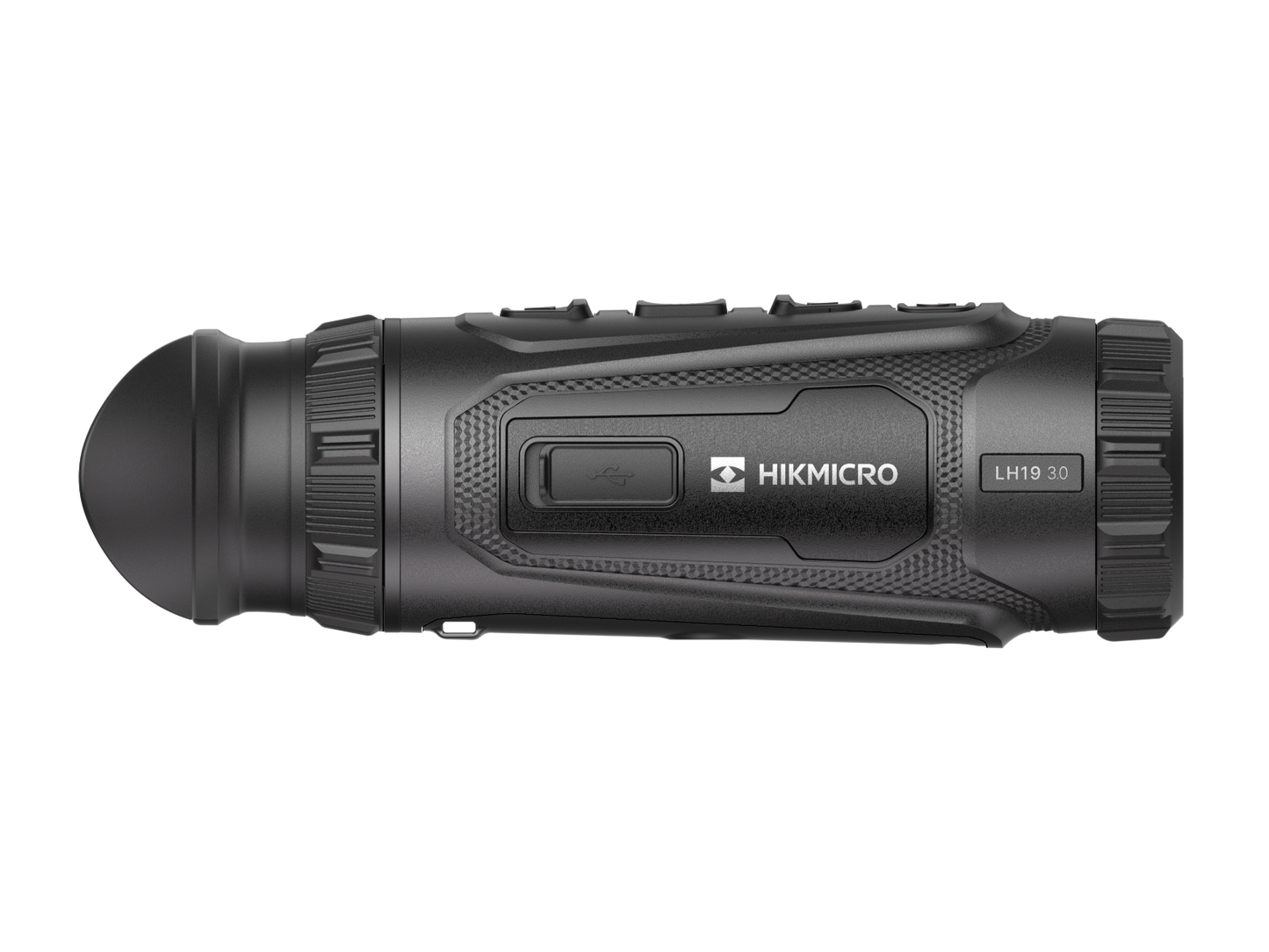

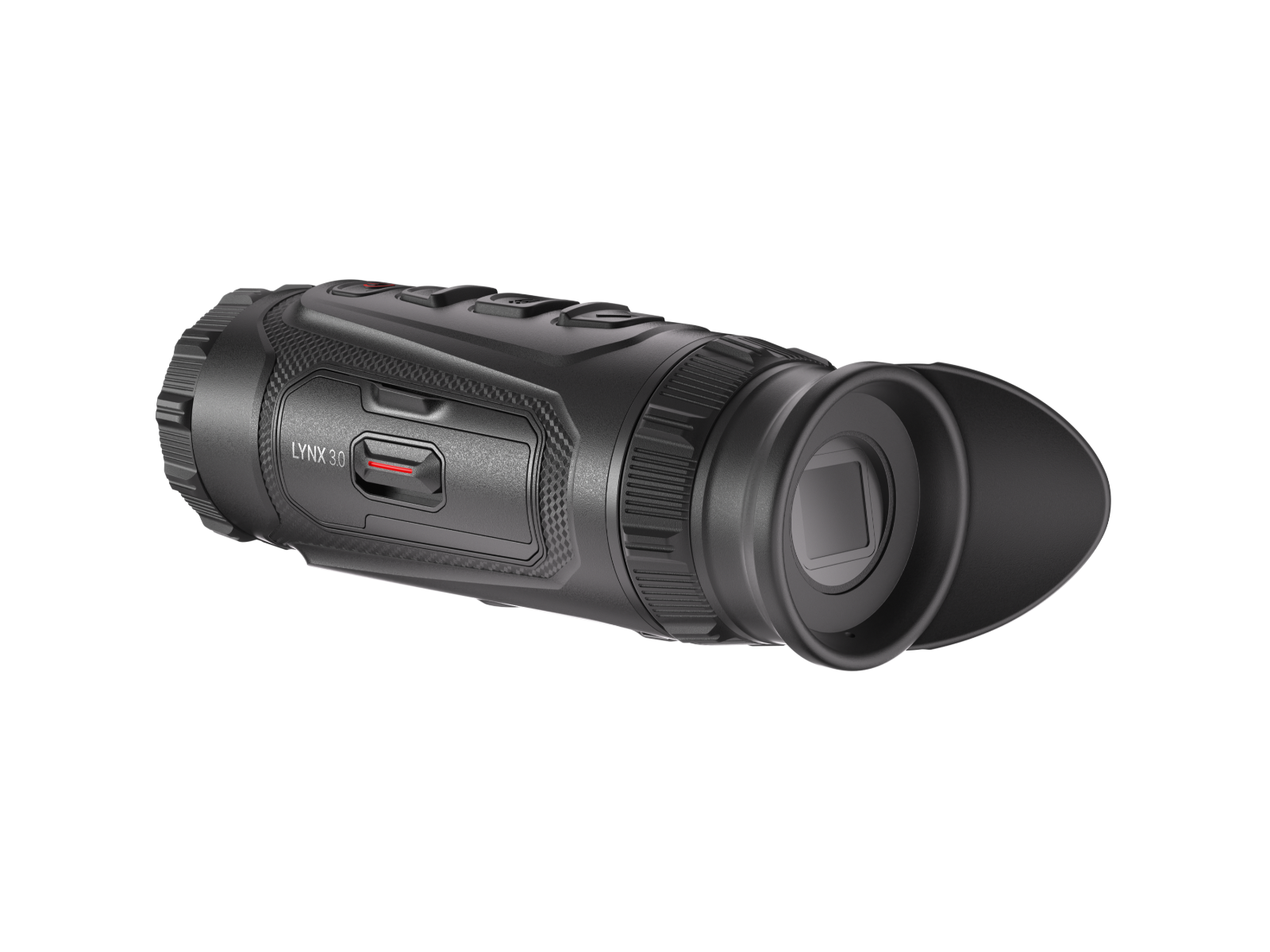

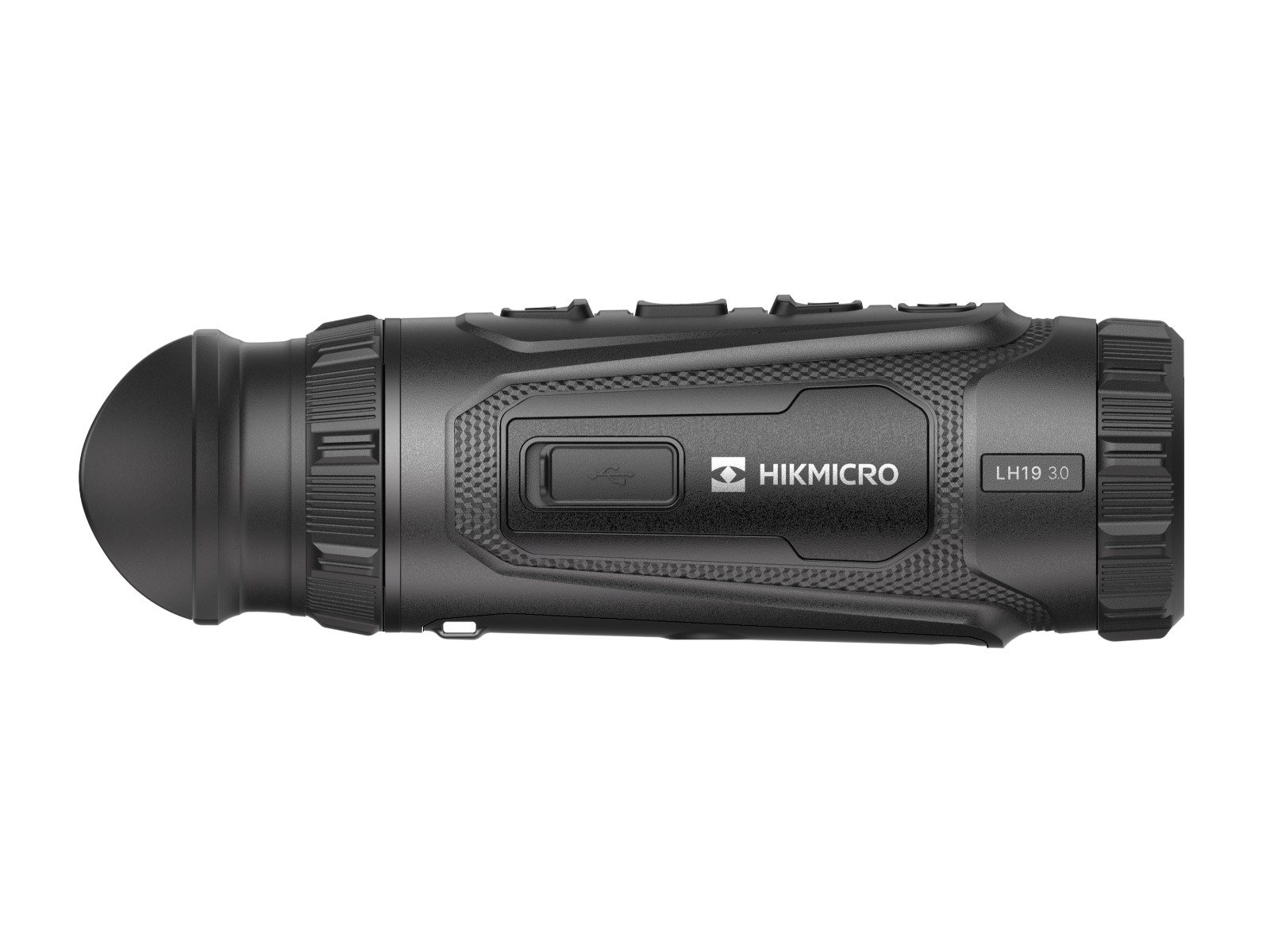

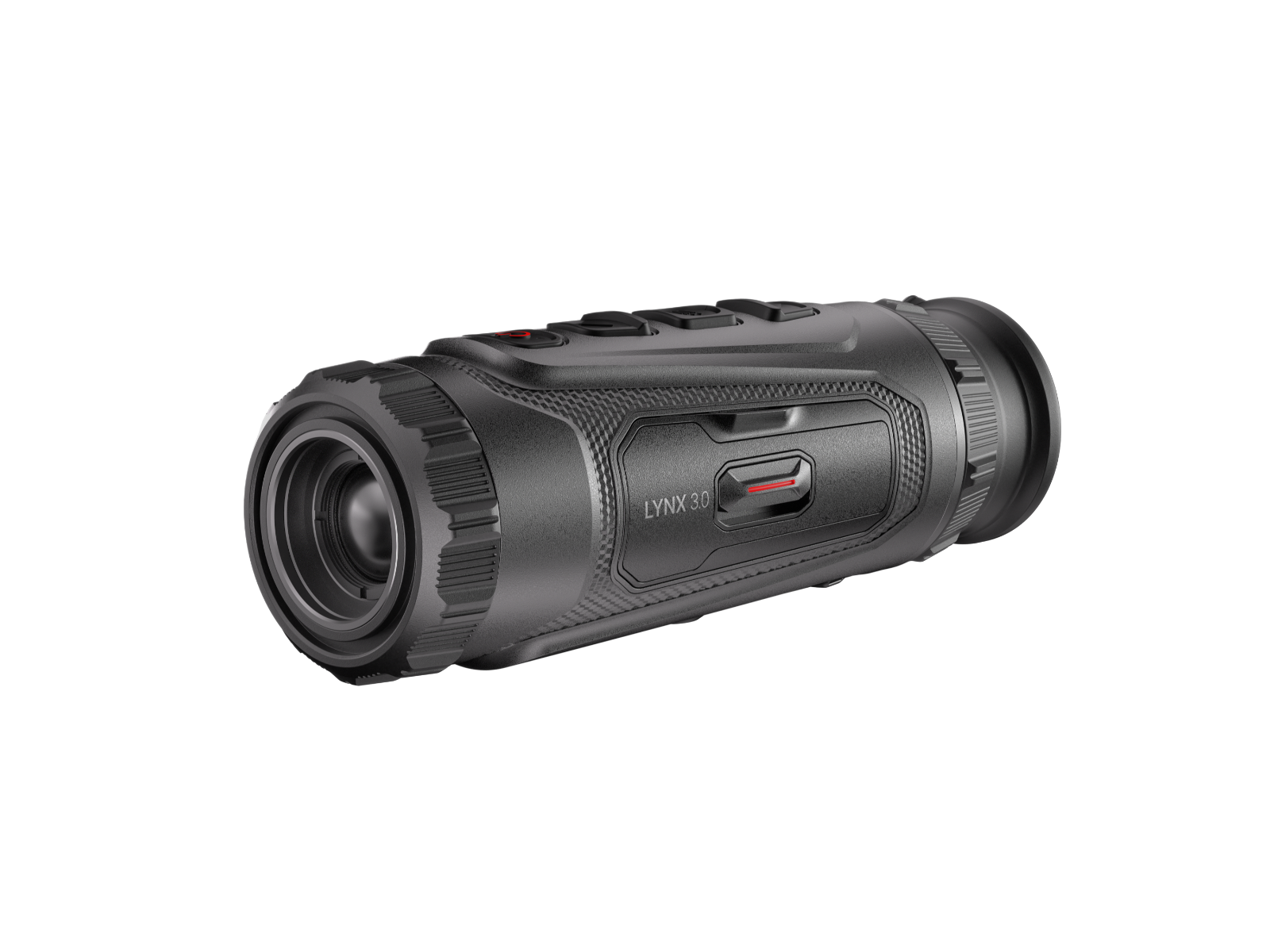

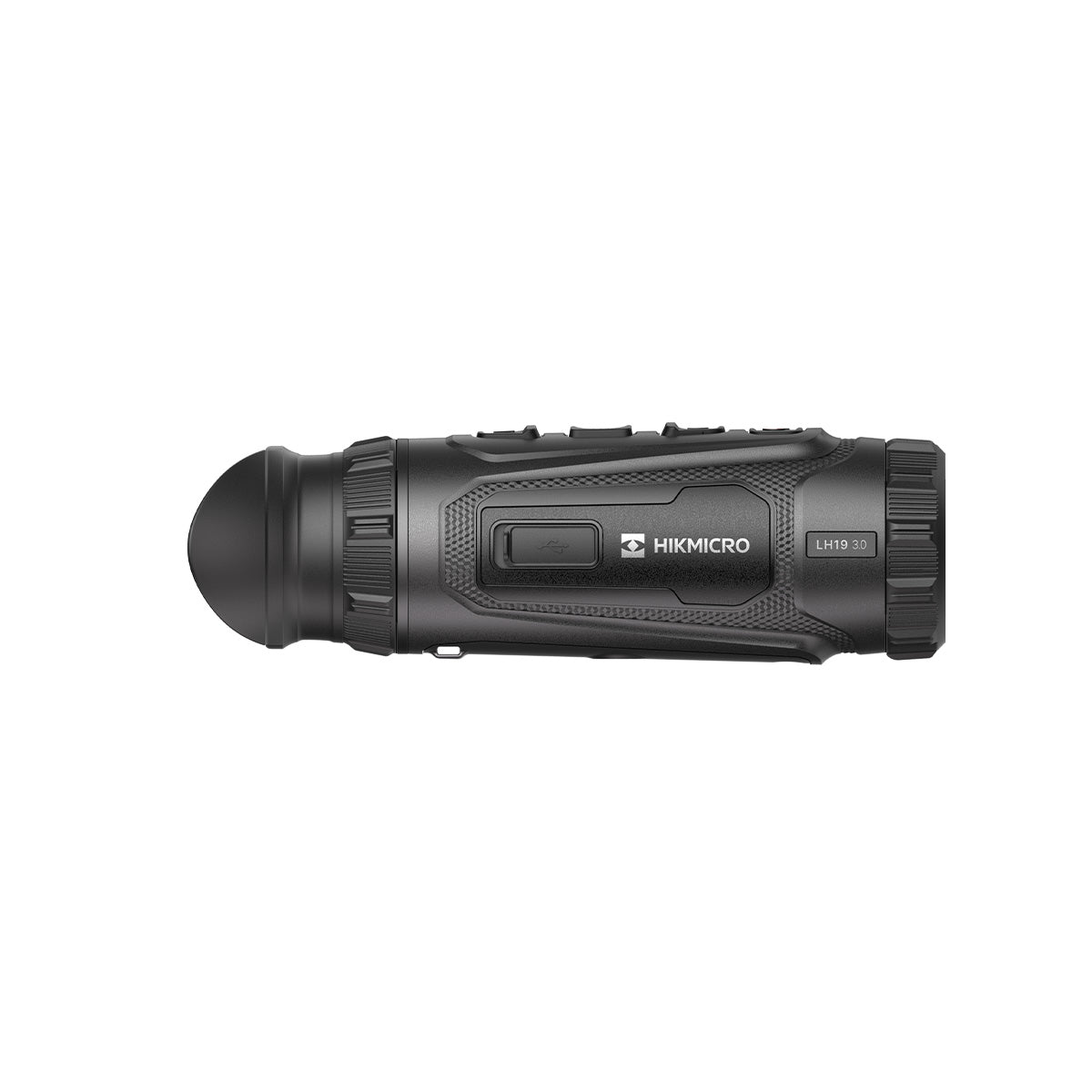

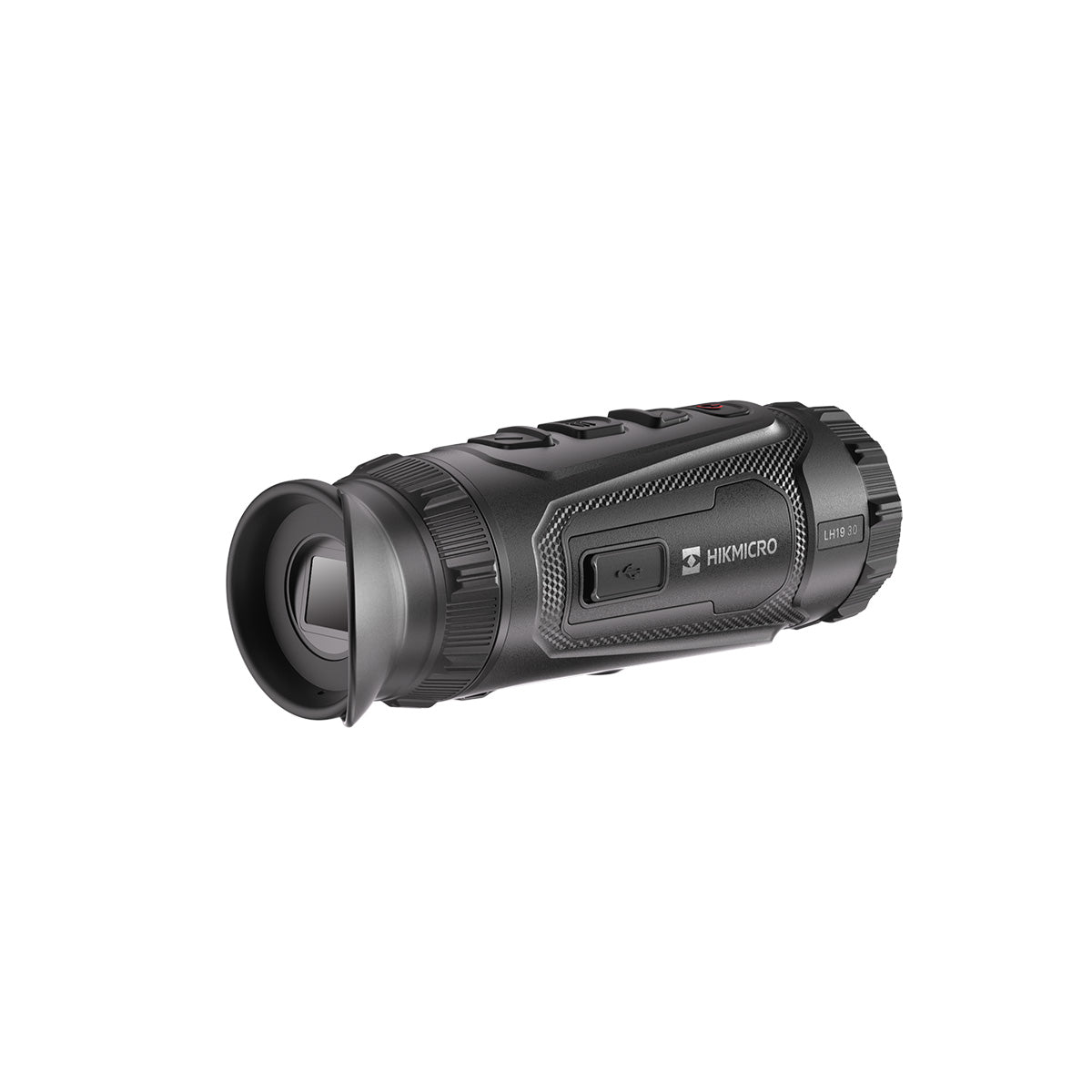

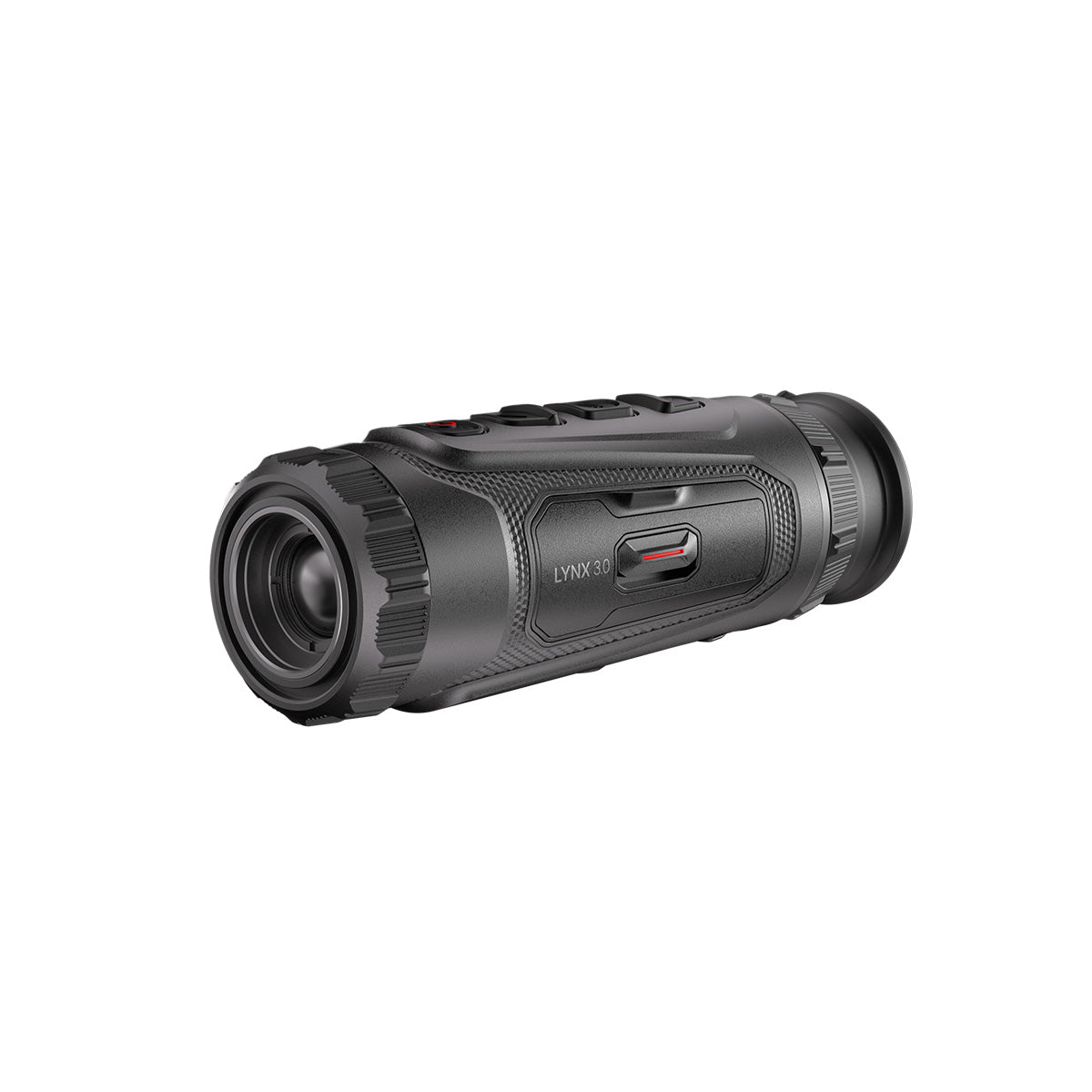

HIKMICRO Lynx 3.0 LH19
HIKMICRO Lynx 3.0 LH19
Couldn't load pickup availability
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384x288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.
Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.
Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Frame Rate50 Hz
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 15 mK (@25°C), F#=1.0
- Lens (Focal Length)19 mm, F1.0
- Focus ModeFocus Wheel
- Min. Focusing Distance3 m
- Magnification1.9 × - 15.2 × (8×)
- Field of View (H × V), Degrees / m @100 m13.8° × 8.4° / 24.2 m × 14.7 m
- Detection Range900 m
- Display1920 × 1080, 0.49 inch, AMOLED
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5 D to +3 D
- Tone AdjustmentCold, Warm
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Image Pro 3.0Yes
- Sync ProYes
- Battery TypeReplaceable and rechargeable 18650 battery
- Protection LevelIP67
- Weight331 g with Battery
Description
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384x288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.
Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.
Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.
Specs
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Frame Rate50 Hz
- Pixel Interval 12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 15 mK (@25°C), F#=1.0
- Lens (Focal Length)19 mm, F1.0
- Focus ModeFocus Wheel
- Min. Focusing Distance3 m
- Magnification1.9 × - 15.2 × (8×)
- Field of View (H × V), Degrees / m @100 m13.8° × 8.4° / 24.2 m × 14.7 m
- Detection Range900 m
- Display1920 × 1080, 0.49 inch, AMOLED
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5 D to +3 D
- Tone AdjustmentCold, Warm
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Image Pro 3.0Yes
- Sync ProYes
- Battery TypeReplaceable and rechargeable 18650 battery
- Protection LevelIP67
- Weight331 g with Battery
Features
- 384×288 thermal detector with NETD < 15 mK
- 19mm F1.0 lens with 900m detection range
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.49” 1920×1080 AMOLED display
- Up to 4.5 hours’ operation at -20°C
- Lightweight, pocket-sized 331g design
