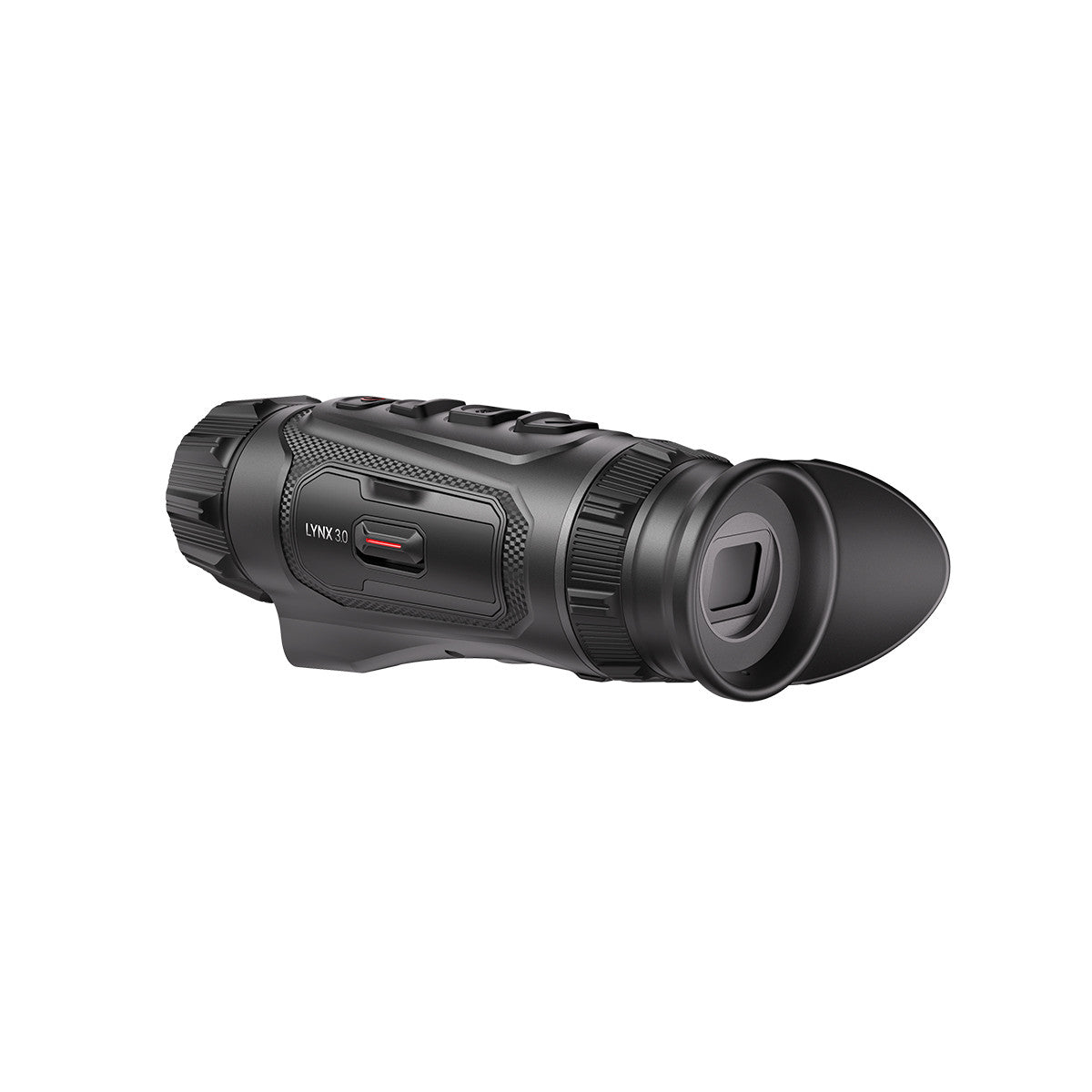

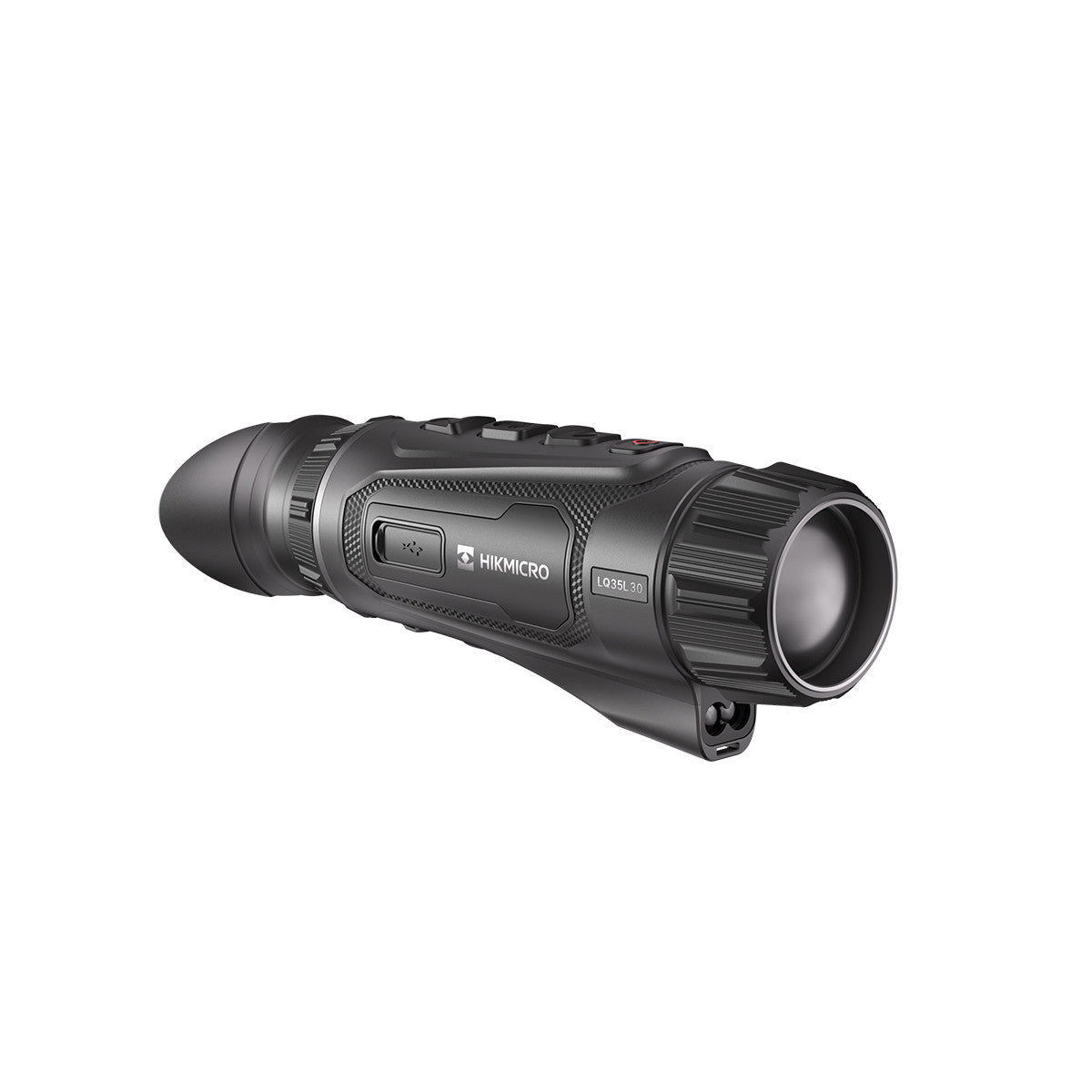

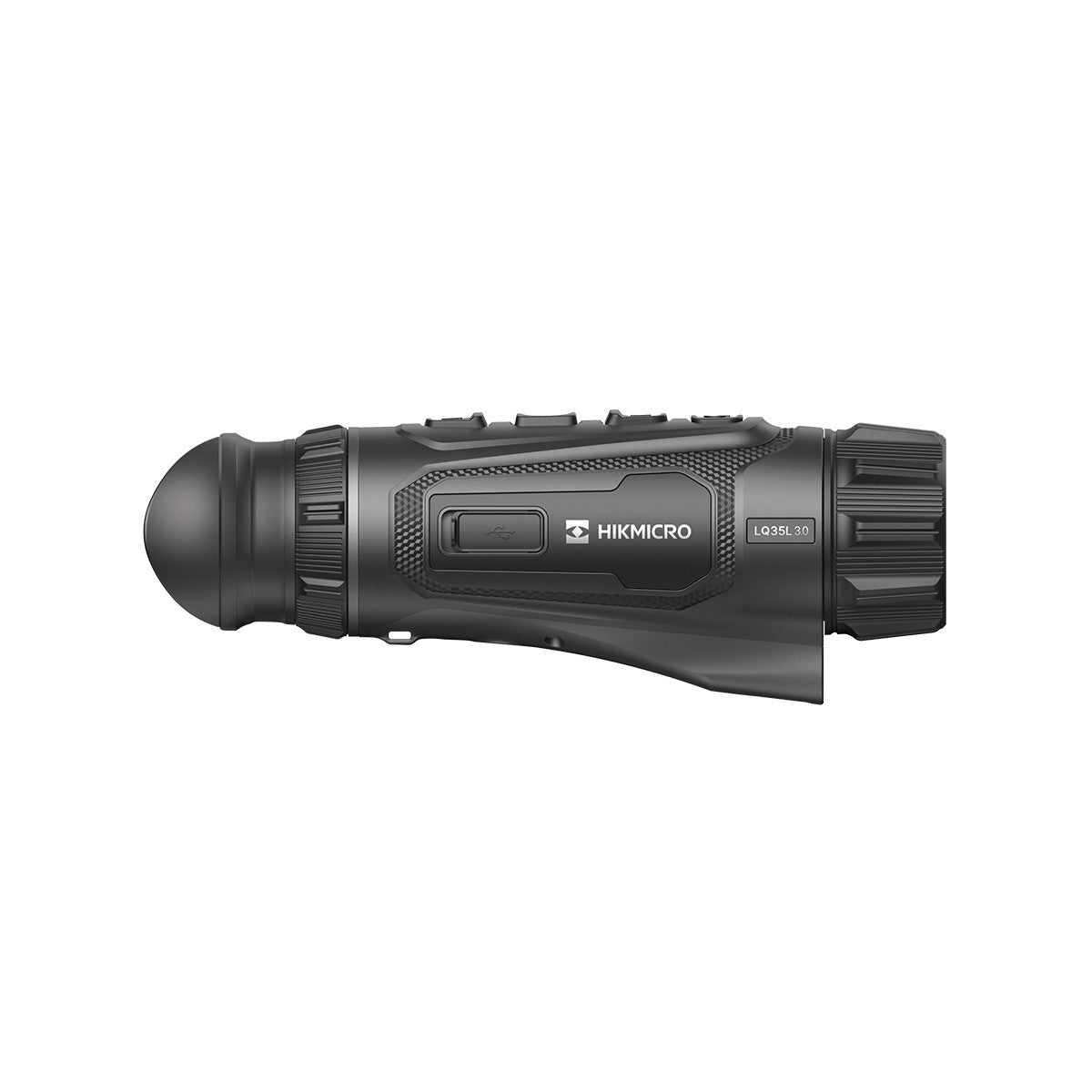

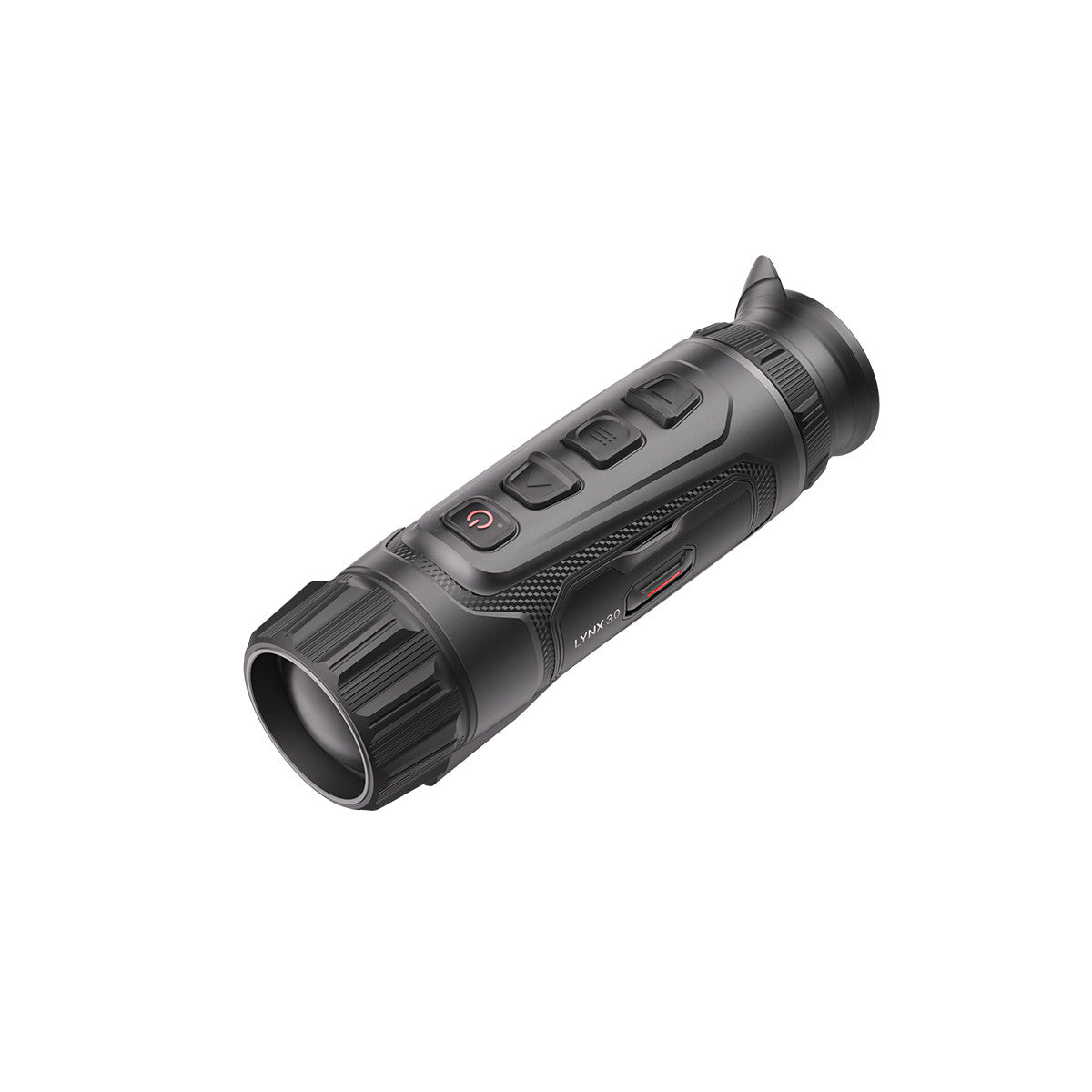

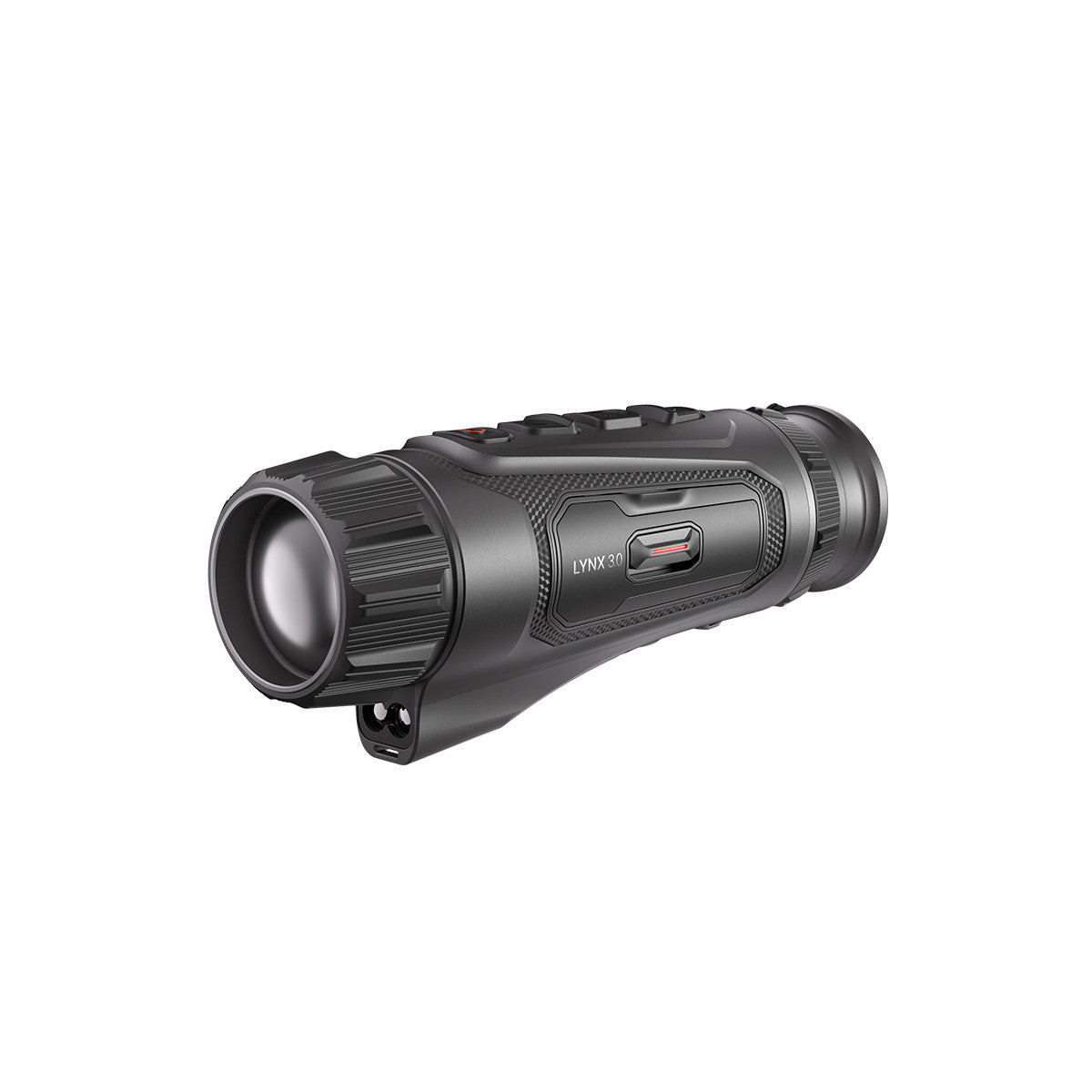

HIKMICRO Lynx 3.0 LG35L

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.

For the First time the LQ35 introduces an integrated Laser Range Finder (LRF) with a 905 nm wavelength and a maximum measuring range of 1000m, providing precise distance measurement directly within the thermal imaging system

Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.

At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.

• High-resolution 640×512 thermal sensor paired with a 35mm F1.0 lens for exceptional detail and clarity.
• Long-range detection up to 1800 metres, ideal for hunting, surveillance, and professional field work.
• Integrated 1000m Laser Range Finder (LRF) providing accurate, on-screen distance measurement.
• Wide 12.5° × 7.5° field of view, offering strong situational awareness and easy target acquisition.
• Advanced AI Image Pro 3.0 and Zoom Pro algorithms deliver improved contrast, sharpness, and image stability.
• Robust yet lightweight at 354.5g, with a replaceable 18650 battery giving up to 4.5 hours runtime in harsh conditions.

• Max. Resolution 640 × 512
• Frame Rate 50 Hz
• Pixel Interval 12 μm
• Response Waveband 8 μm – 14 μm
• NETD< 15 mK (@25°C), F#=1.0
• Lens (Focal Length)35 mm, f1.0
• Focus Mode  Focus Ring
• Detection Range 1800 m
• Min. Focusing Distance  3.5 m
• Magnification 1.9× – 15.2× (8×)
• Field of View   (H × V)12.5° × 7.5° / 21.9 m × 13.2 m @100 m
• Display  1920 × 1080, 0.49 in, AMOLED
• Palettes  Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil 6 mm
• Eye Relief 20 mm
• Diopter (Range) -5D to +3D
• Brightness Adjustment Yes
• Tone Adjustment Cold, Warm
• Contrast Adjustment Yes
• Zoom Pro Yes
• HSIS (HIKMICRO Shutterless Image System)Yes
• Image Pro 3.0 Yes
• Record Video Yes
• Capture Snapshot Yes
• Audio Recording Yes
• Standby Mode Yes
• Built-in Memory 64 GB EMMC
• PIP Yes
• Hotspot 2.4 GHz / 5 GHz Wi-Fi
• Hot Track Yes
• Distance Measurement Yes
• Local Album Yes
• Battery Type Replaceable & Rechargeable Li-ion 18650
• Battery Operating Time 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
• Type-C Power Supply 5V DC, 2A
• External Power SupplySupported, Direct Charging Supported
• Safety Class for LaserClass 1
• Wavelength 905 nm
• Max Measuring Range 1000 m
• Min. Measuring Range 10 m
• Measurement Accuracy ±1 m
• Protection Level IP67
• Dimension 169.6 × 53.6 × 49.5 mm
• Weight 354.5 g (with battery)
• Working Temperature -30°C to 45°C (-22°F to 113°F)
• Humidity ≤ 90%

• Up to 640×512 Thermal resolution
• High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
• 35 mm, F1.0 lens with thermal detection range up to 1800 m
• HIKMICRO Shutterless Imaging System (HSIS)
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 354.5 g, with a pocket-sized build
• Integrated 1000m Laser Range Finder
