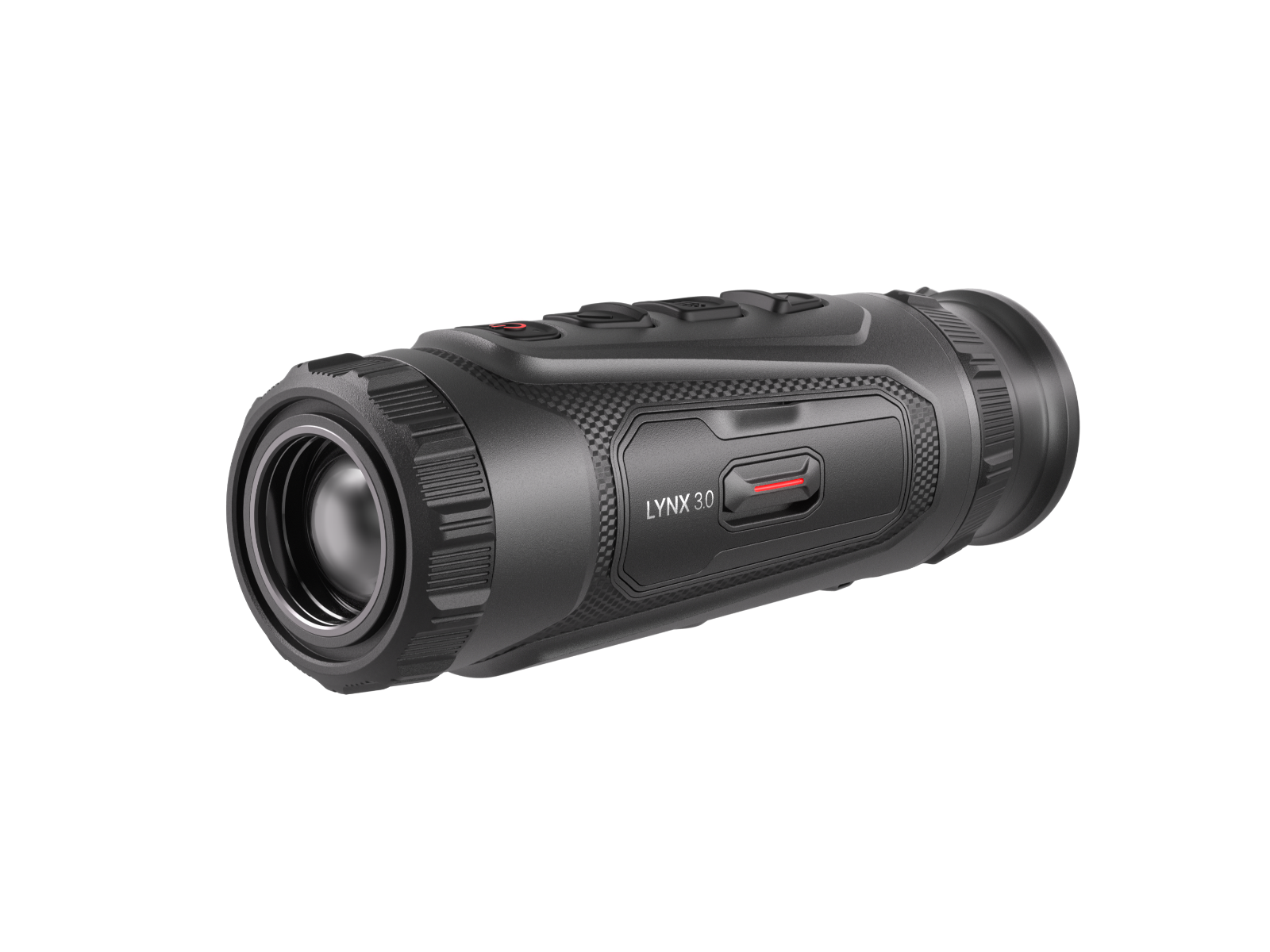

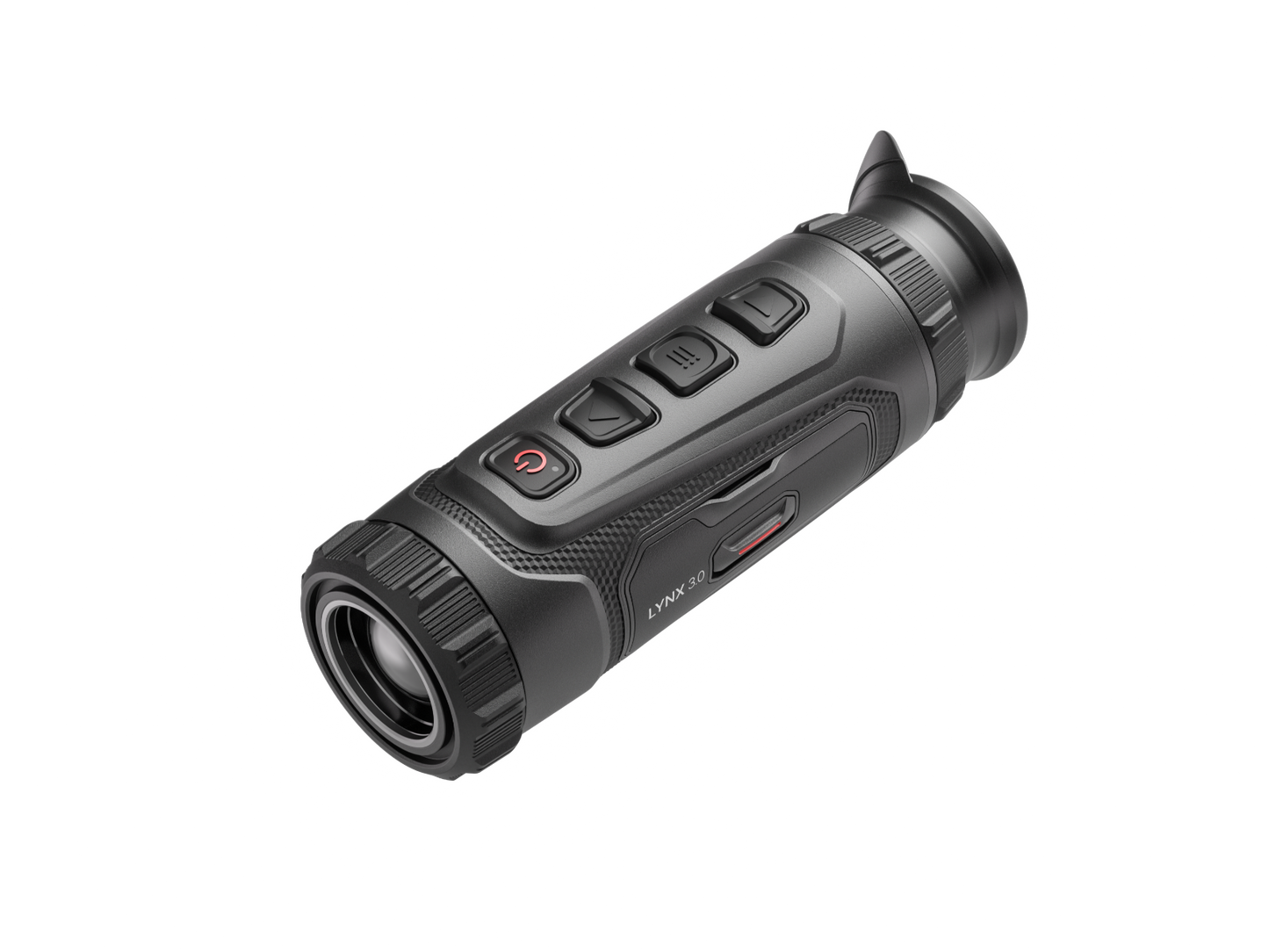

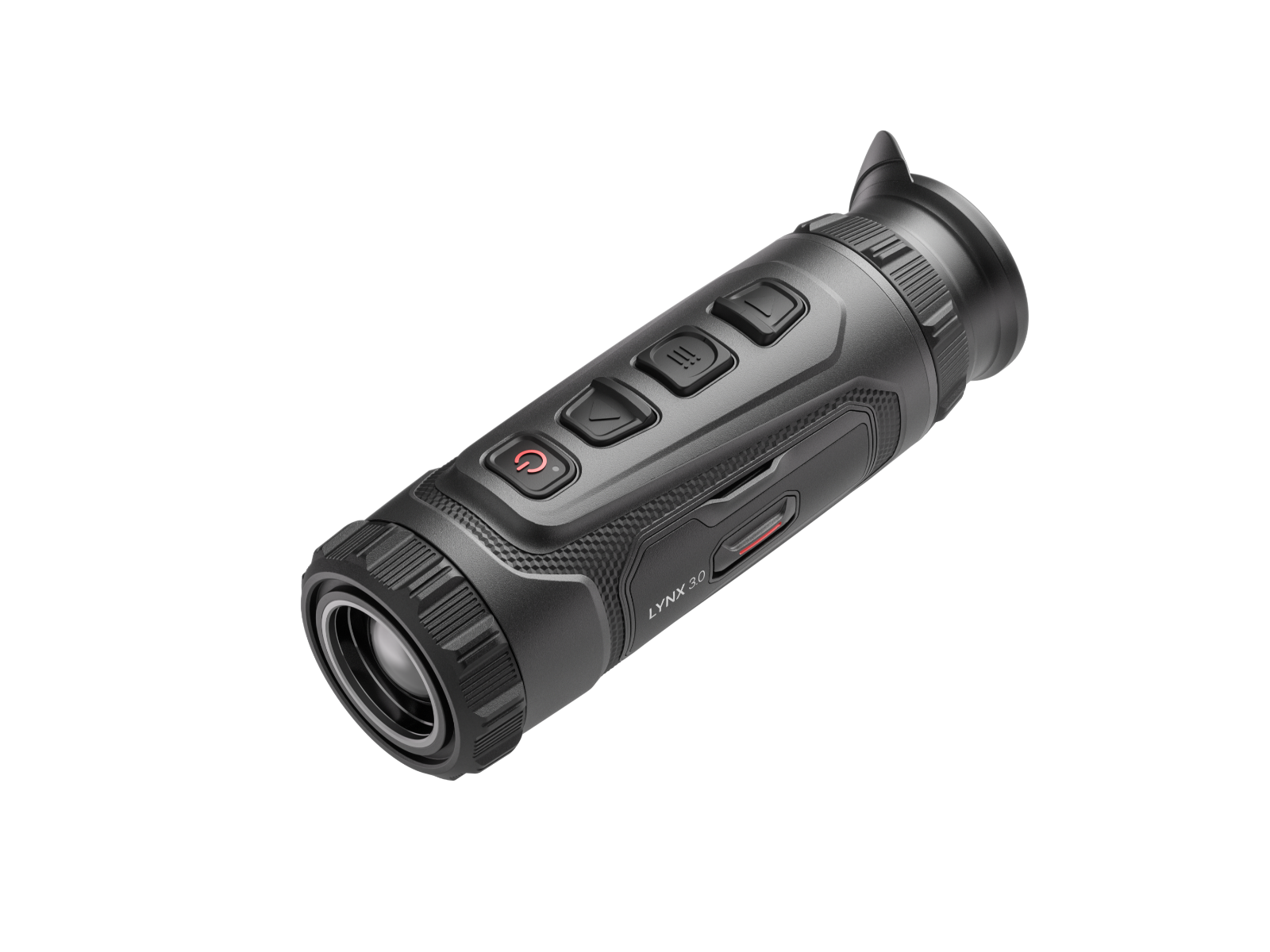

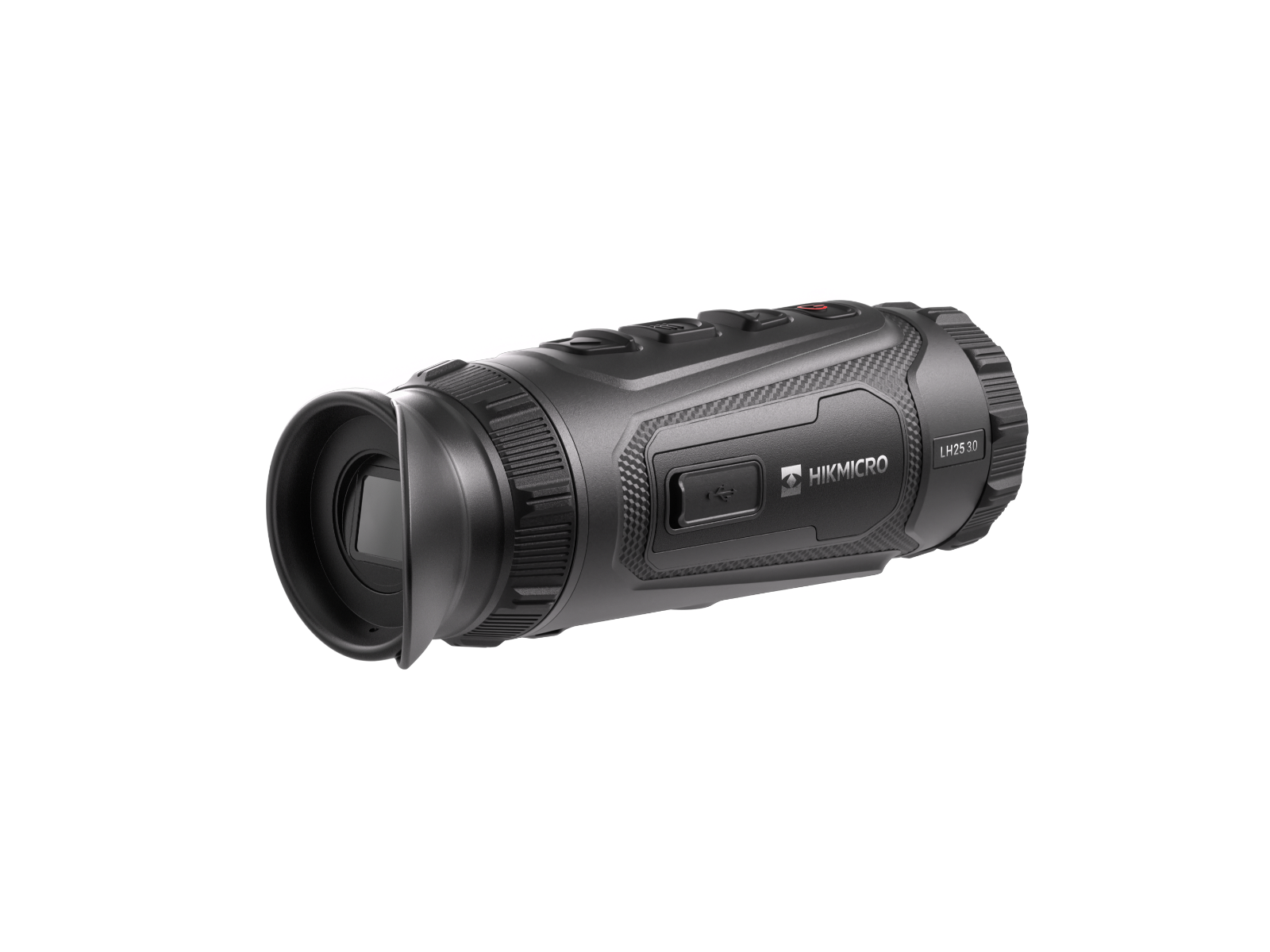

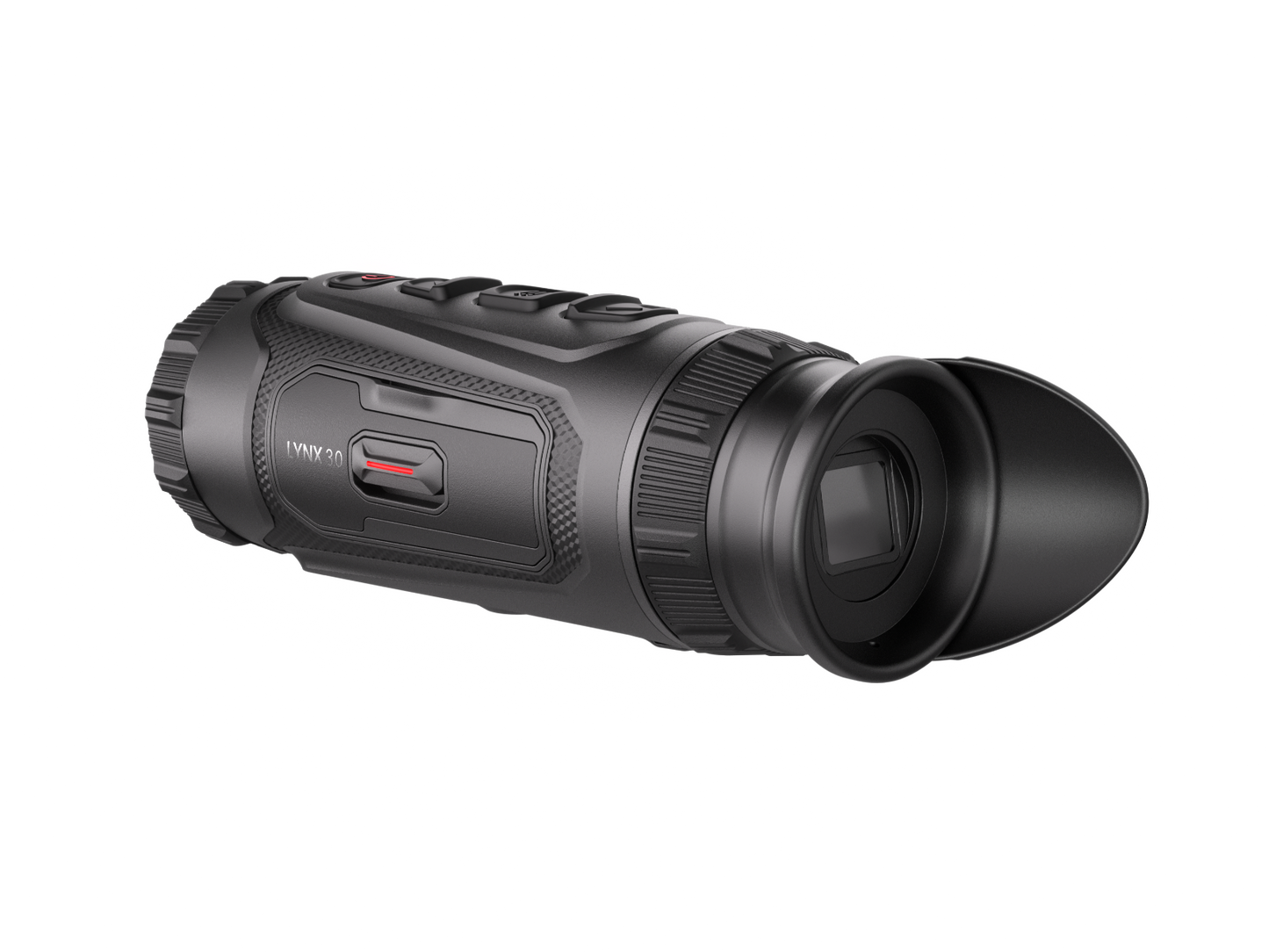

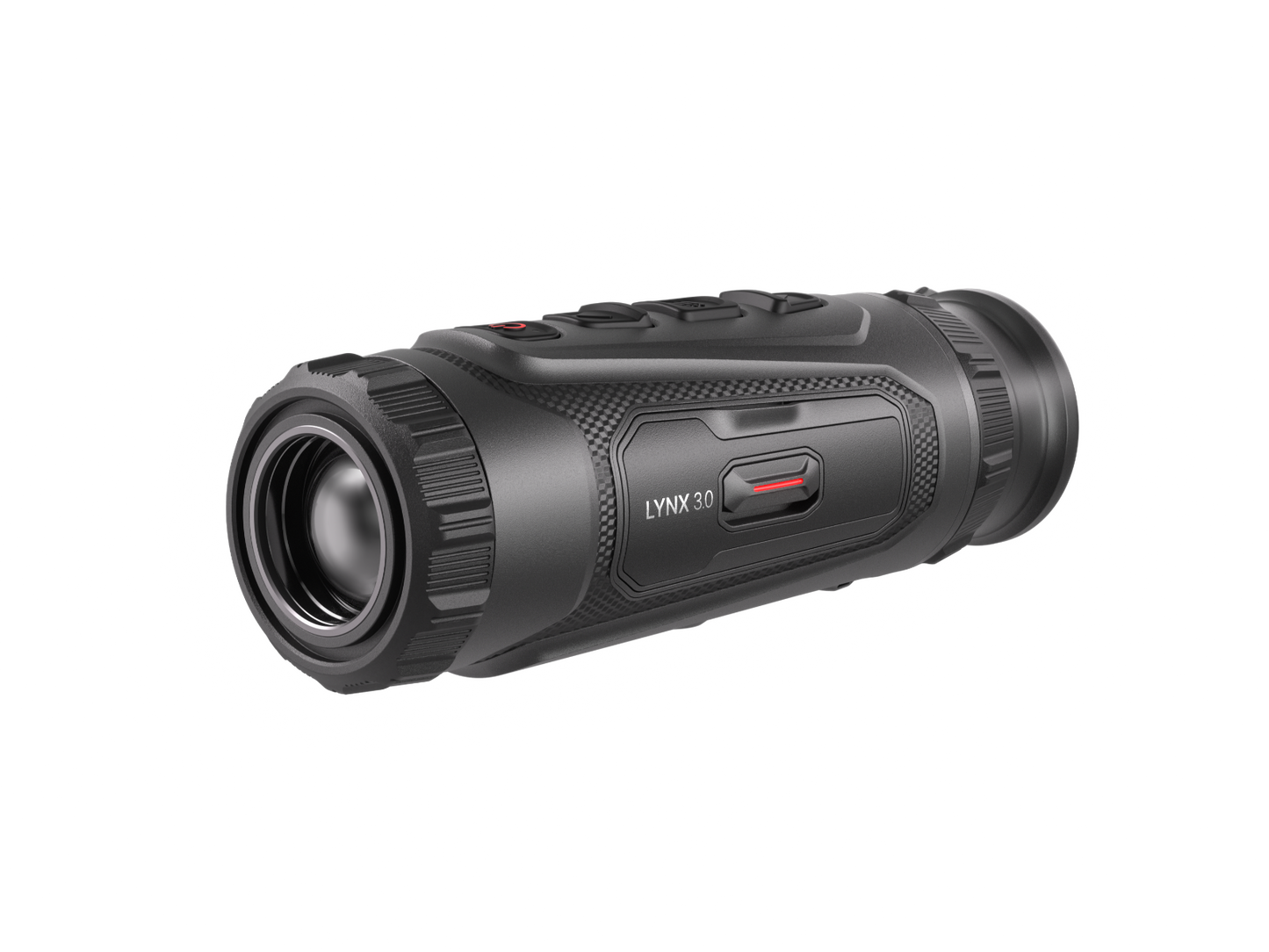

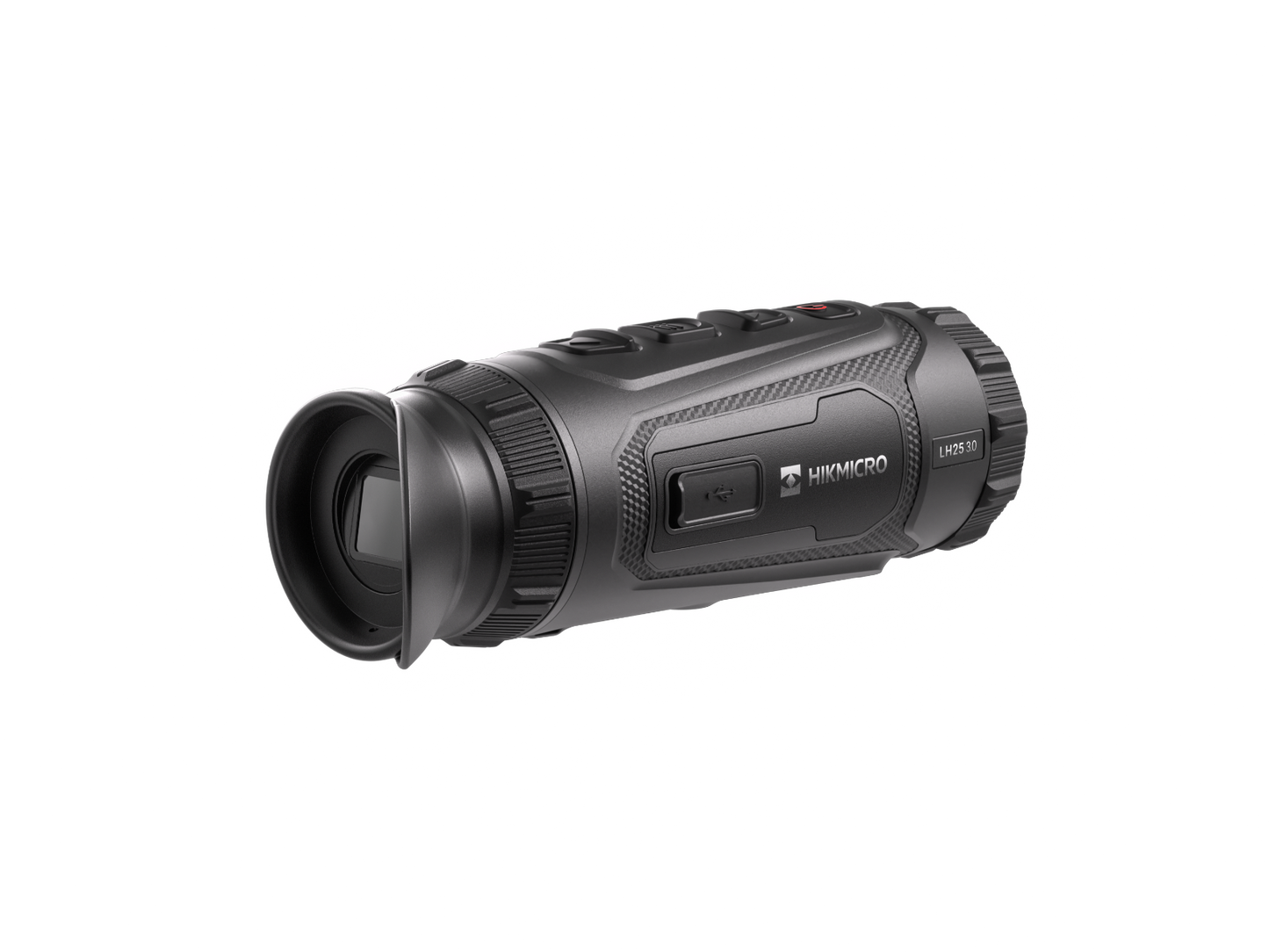

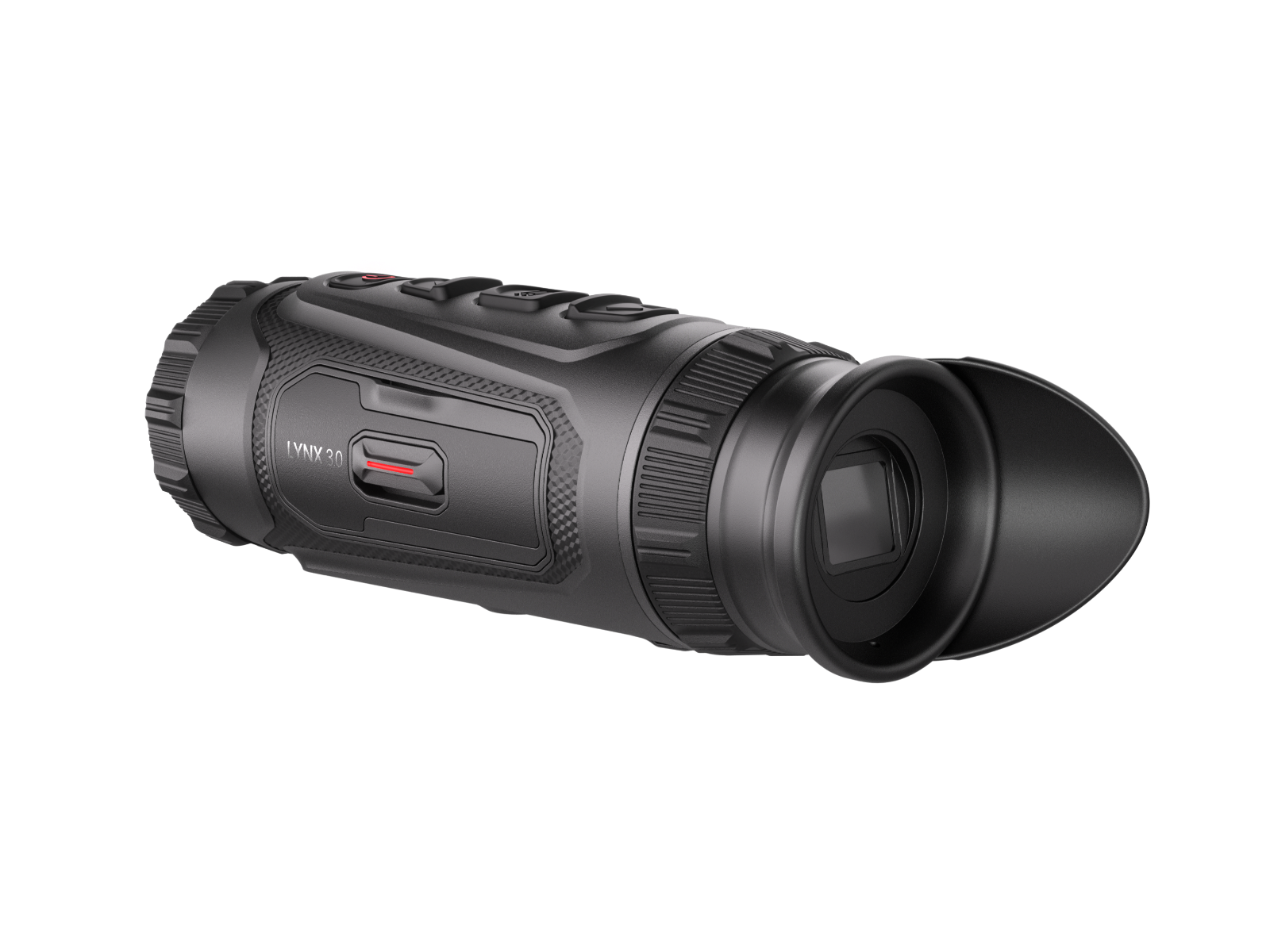

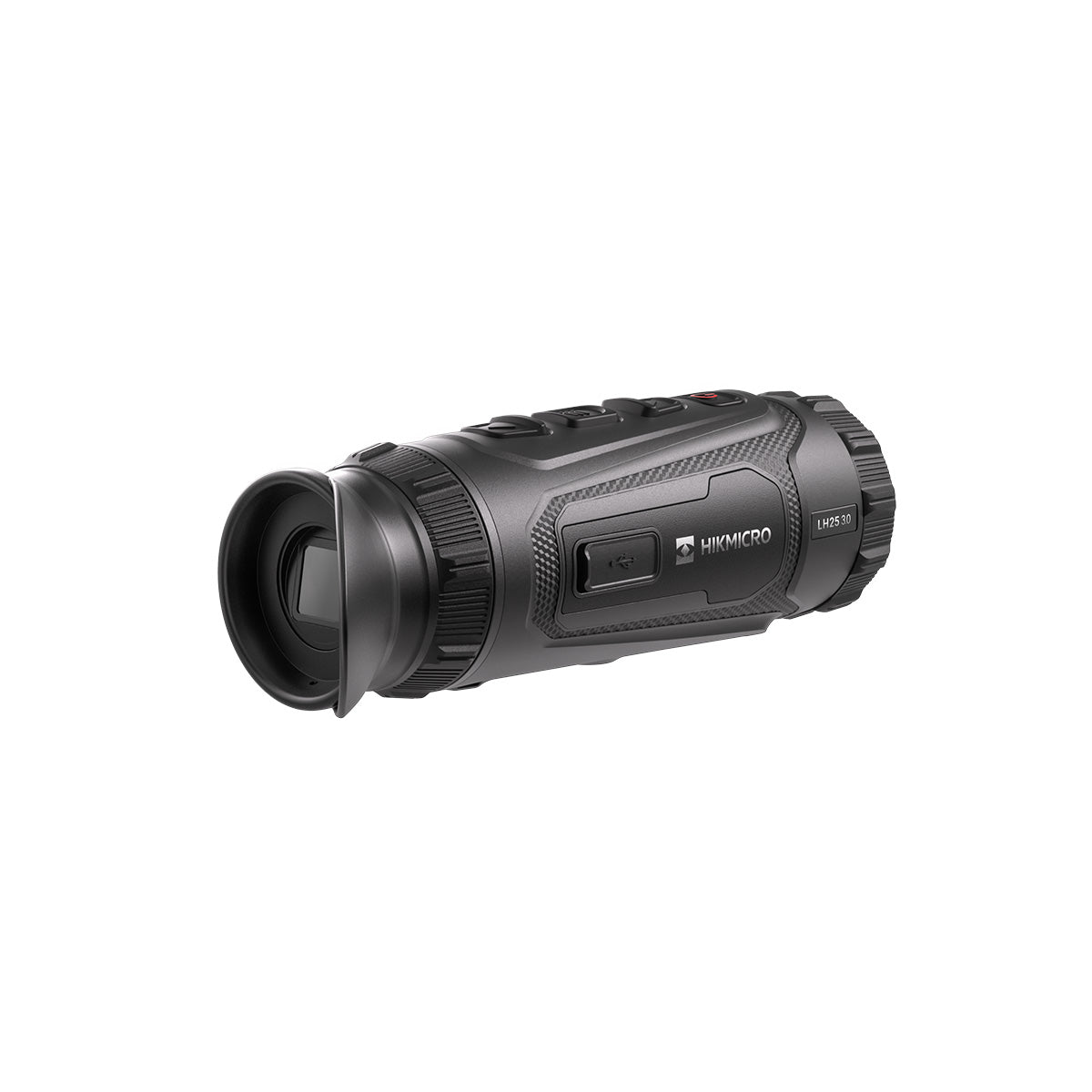

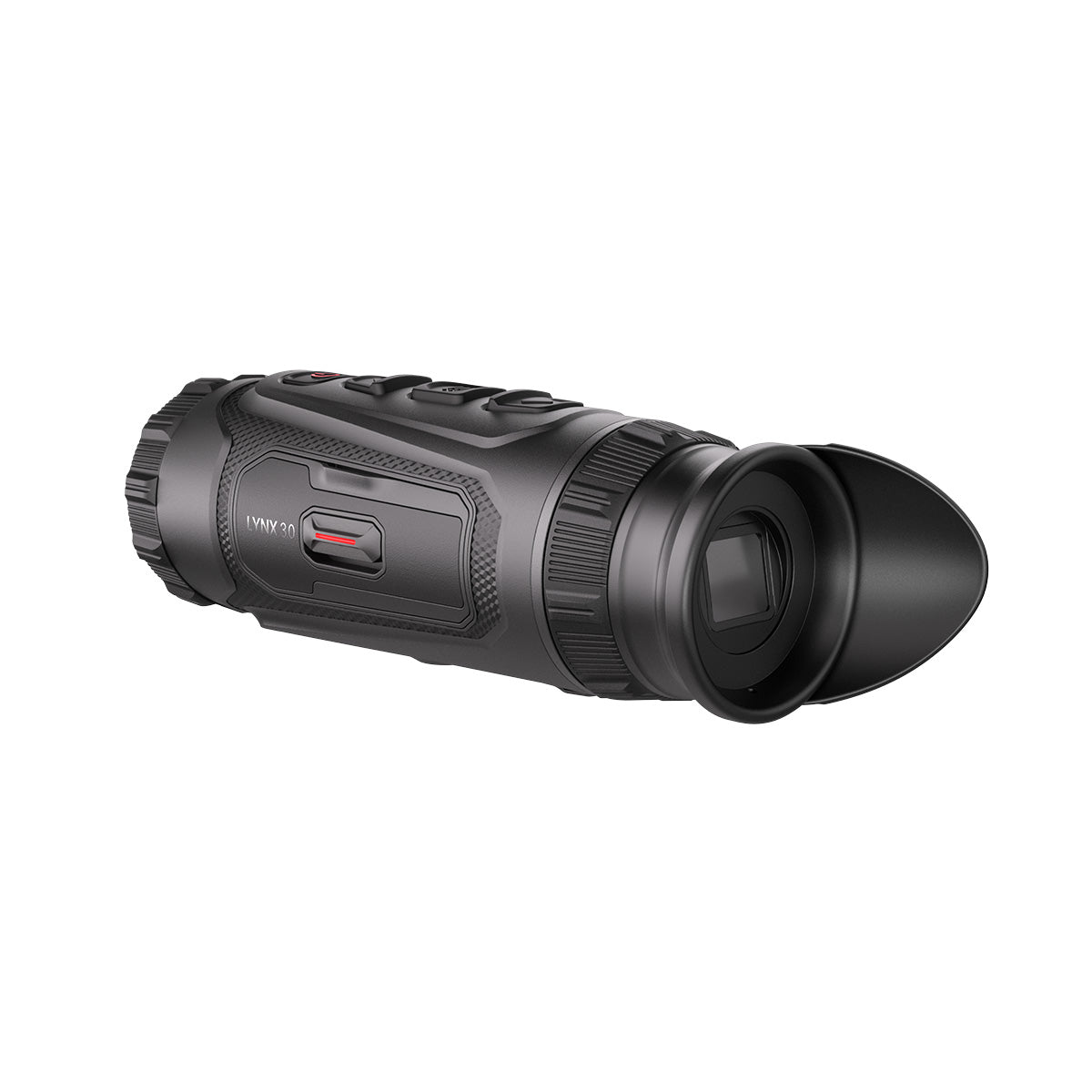

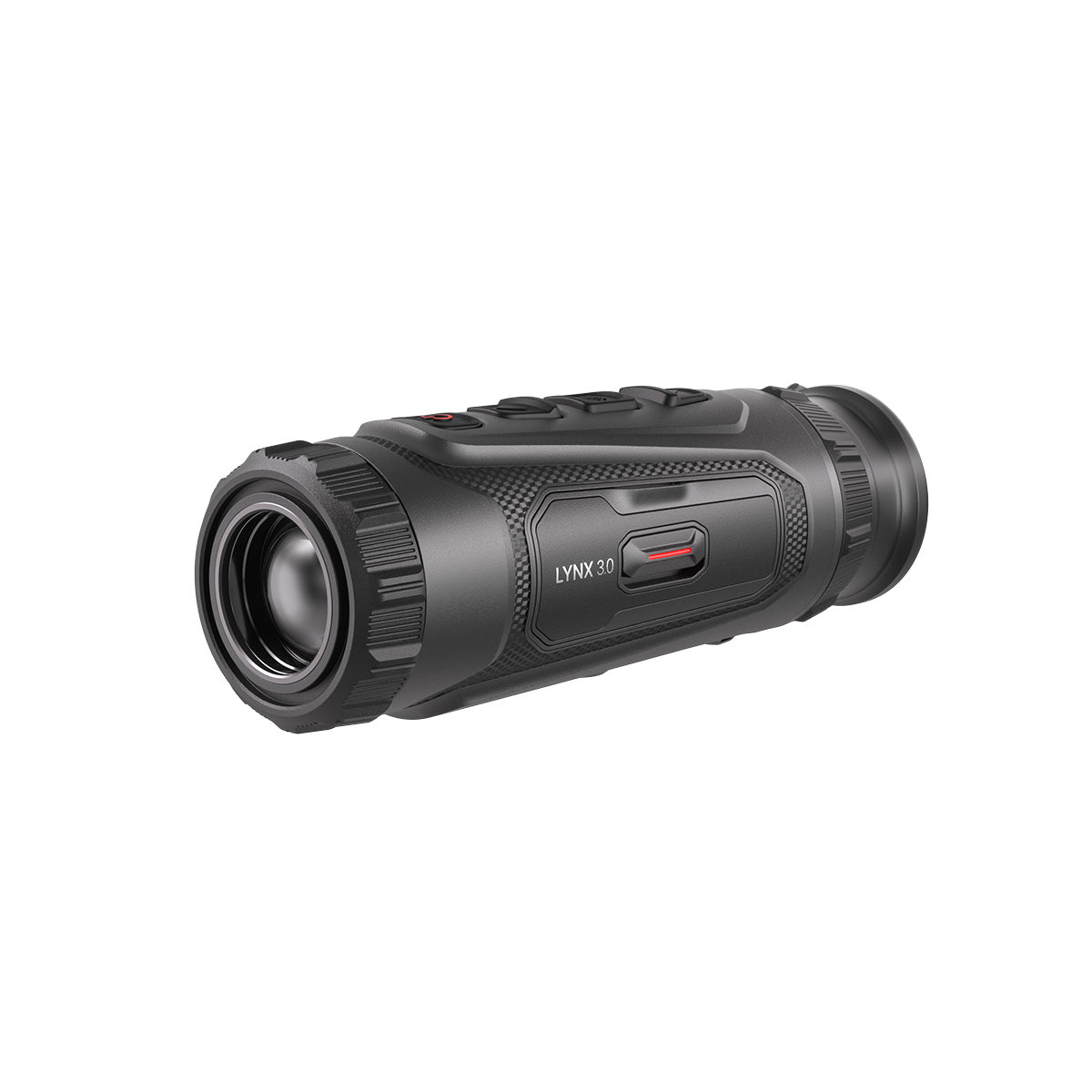

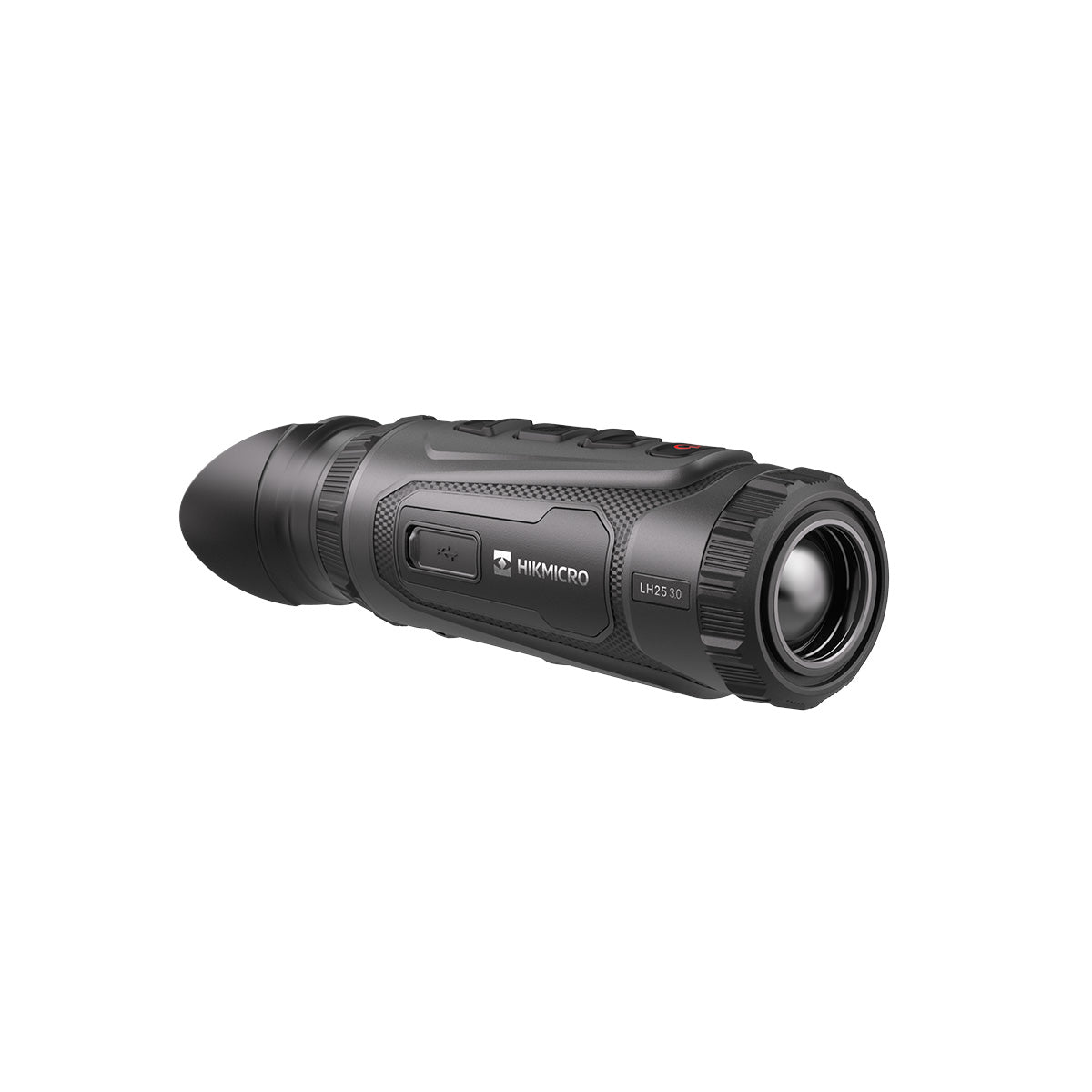

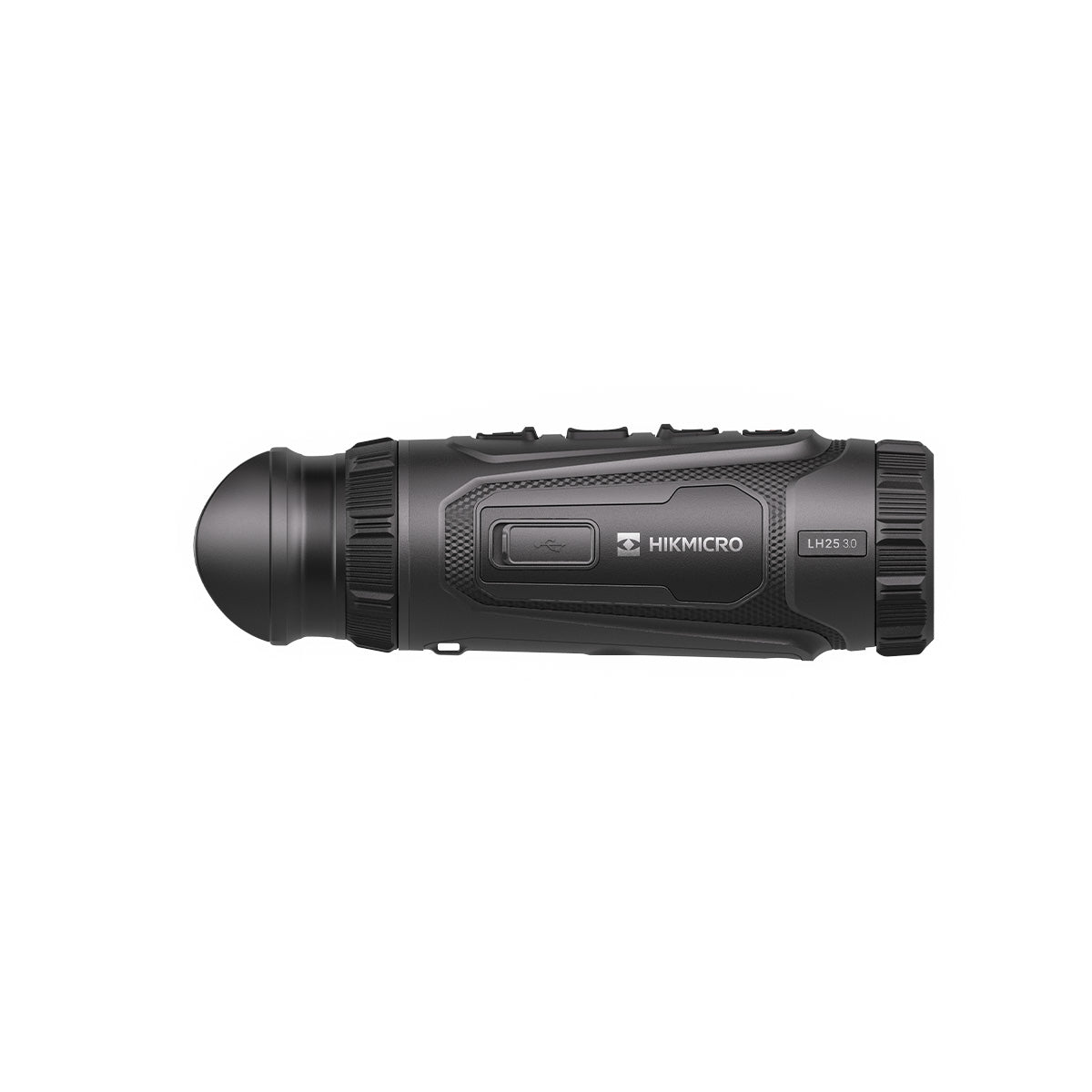

HIKMICRO Lynx 3.0 LE25
HIKMICRO Lynx 3.0 LE25
Couldn't load pickup availability
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH25 is built for professionals requiring extended range and precision. With a 384x288 thermal detector and a 25mm F1.0 lens, it delivers 2.5x base magnification, a 10.5° field of view, and a 1200-metre detection range, ensuring exceptional long-distance performance.
Driven by AI Image Pro 3.0 and Zoom Pro algorithms, the LH25 enhances image detail and consistency under all lighting conditions. Its HSIS shutterless system ensures fluid, silent image processing for uninterrupted use in tactical or wildlife applications.
Weighing only 328.5 grams, the LH25 combines portability with rugged dependability. The replaceable 18650 battery powers up to 4.5 hours at -20°C, ensuring sustained operation for demanding professionals. Designed for open landscapes and technical use, it sets a new standard in thermal imaging efficiency.
Specs
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Frame Rate50 Hz
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 15 mK (@25°C), F#=1.0
- Lens (Focal Length)25 mm, F1.0
- Focus ModeFocus Wheel
- Min. Focusing Distance3 m
- Magnification2.5 × - 20 × (8×)
- Field of View (H × V), Degrees / m @100 m10.5° × 6.4° / 18.4 m × 11.2 m
- Detection Range1200 m
- Display1920 × 1080, 0.49 inch, AMOLED
- Contrast AdjustmentYes
- Brightness AdjustmentYes
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5 D to +3 D
- Tone AdjustmentCold, Warm
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Image Pro 3.0Yes
- Sync ProYes
- Battery TypeReplaceable and rechargeable 18650 battery
- Protection LevelIP67
- Weight328.5 g with Battery
Features
- 384×288 thermal detector with NETD < 15 mK
- 25mm F1.0 lens with 1200m detection range
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.49” 1920×1080 AMOLED display
- Up to 4.5 hours’ operation at -20°C
- Lightweight, pocket-sized 328.5g design
