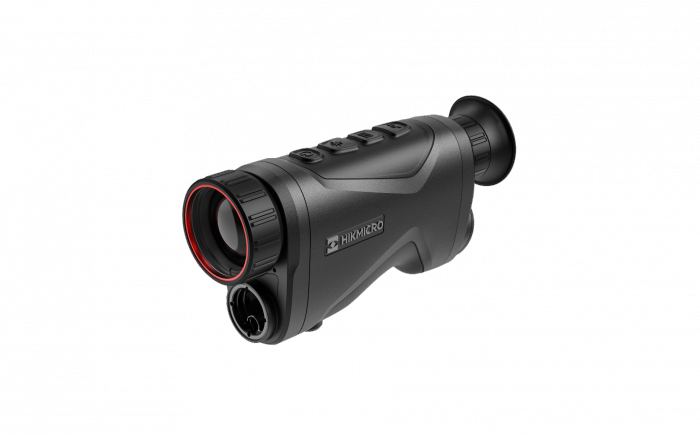

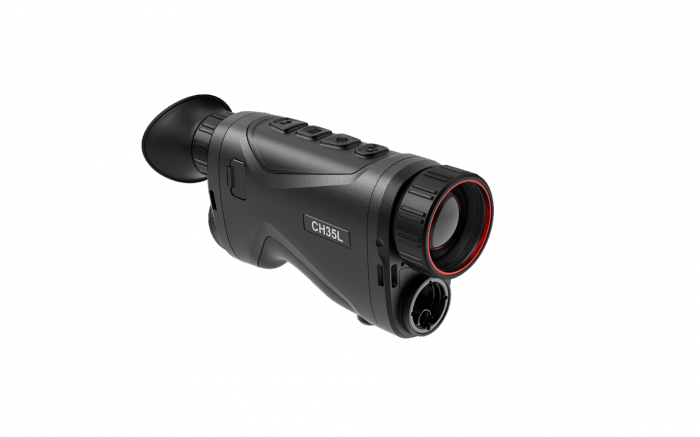

HIKMICRO Condor CH35L 35mm LRF

HIKMICRO Condor CH35L 35mm LRF

Regular price £1,699.00 GBP
Regular price Sale price £1,699.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The new HIKMICRO Condor LRF thermal monocular is built around the same high performance, SUB 20mk NETD 384x288px thermal sensor that is found in the acclaimed Falcon series but with the addition of a 1000m Laser Range Finder to make it easer to judge the distance to your target, even in complete darkness.

The combination of HIKMICRO’s highly sensitive 384x288px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition. The 35mm focal length offers high magnification with 3.5x base magnification to help detect and identify heat sources at distance. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information like branches and leaves. The Condor delivers a detailed picture of your surroundings and heat sources, even in the most challenging weather conditions.

Utilising an all-new magnesium alloy chassis with ergonomic grip and profiled buttons, the Condor is comfortable and intuitive to use from the first time you pick it up. It is compact in size and can be comfortably be used in one hand and slips easily into a pocket. Powered by a single 18650 battery which delivers 4.5 hours of run time, the three batteries supplied in the box allow up to 13.5 hours of continuous use.

The Condor is controlled by the latest HIKMICRO software which includes advanced algorithm options including Image Pro and Zoom Pro which can be used to optimise the sharpness of the image.

The Condor also boasts all of the software features found in other HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in memory also allows you to save images and videos directly onto the monocular.

Specs

Sensor: 384×288px @ 12µm
Objective Lens (Focal Length): 35mm
Detection Range (Human 1.8 x 0.5m): 1800m
Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 384×288px
Pixel pitch, µm: 12µm
Frame rate, Hz: 50 Hz
NETD: <20mK
Objective lens: F1.0 F1.0
Magnification: 2.5x - 20x 3.5x - 28x
Magnification (Digital): 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Field of view: 10.53°× 7.9° 7.5°x5.6°
LRF Fitted: Yes Yes
Maximum range: 1000m 1000m
Measurement accuracy: ± 1m ± 1m
Type: 9.9mm, OLED
Resolution, Pixels: 1024 ×768
Colour Palettes: White Hot, Black Hot, Red Hot, Fusion
Image Pro: YES
Zoom Pro: YES
Record Video: YES
Capture pictures: YES
Audio recording: YES
Standby mode: YES
Picture in Picture: YES
Hot Tracking: YES
WiFI hot spot: YES
HIKMICRO Connect App support: YES
Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -30 °C to 55 °C
Dimensions, mm: 184mm x 53mm x 87mm
Weight, kg: 0.4 kg
Operating time on battery (WiFi & Hot tracking disabled): 4.5 hours
Charging interface: Removable 18650 battery
