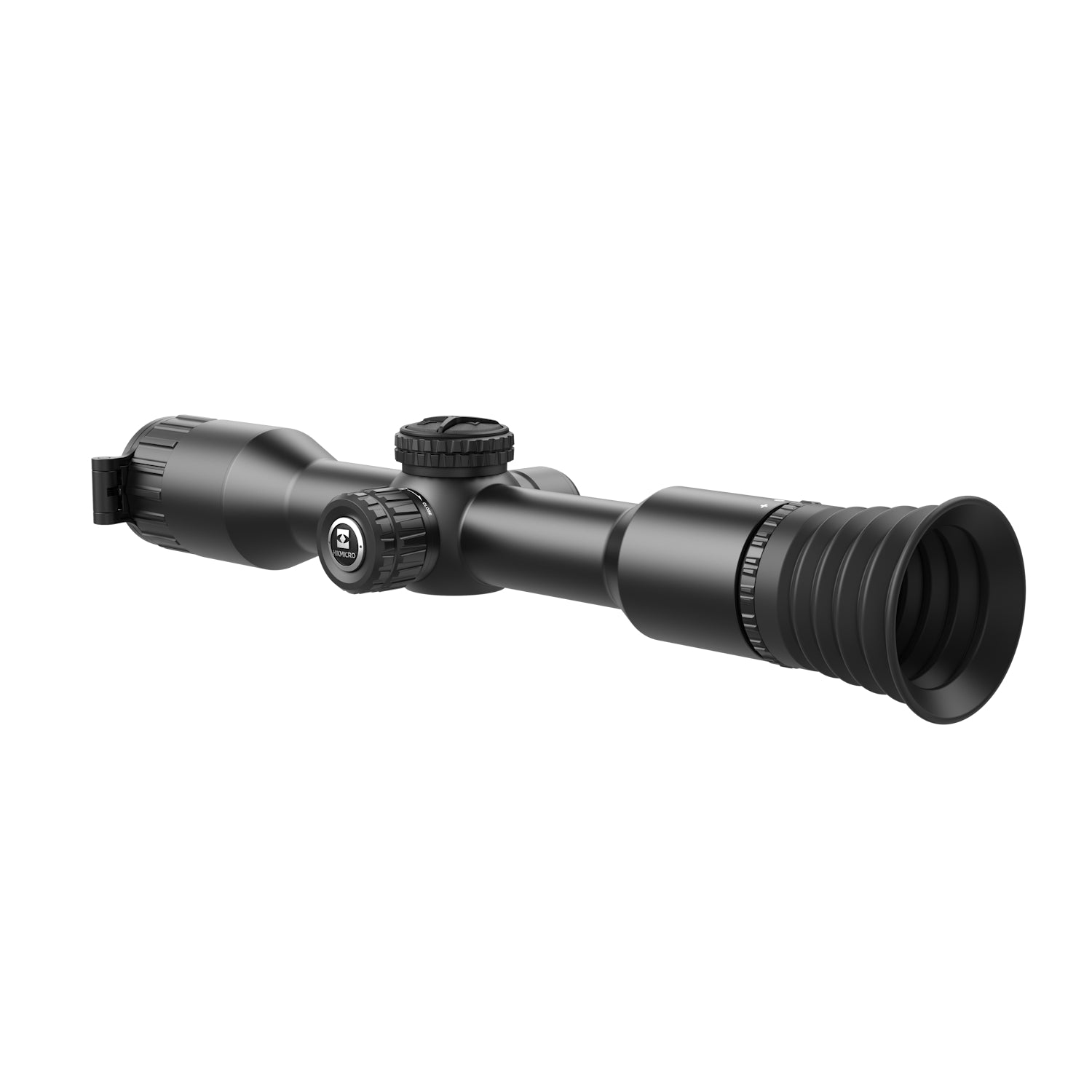

HIKMICRO Alpex Lite A40E

In a World First, HIKMICRO have brought to market the first 4K Digital Day/Night scope

designed specifically for Airguns. 60% lighter and 25% more compact than it’s big brother the

Alpex 4K whilst retaining it’s 30mm magnesium alloy tube body, the Alpex 4K Lite is perfectly

matched to shorter range, smaller & lighter rifles. Go Lite, Strike Right.

Redefining compact precision, the ALPEX 4K Lite A40E is a cutting-edge digital day and night vision scope purpose-built for airgun hunters and pest control professionals. Powered by an ultra-high-definition 3840×2160 CMOS sensor and a 40mm F2.0 lens, it delivers unmatched clarity with an 18.7m field of view at 100m—day or night. Compact yet powerful, this scope sets a new benchmark in lightweight field optics

Engineered for low-light dominance, the A40E features adaptive 4K imaging and advanced rendering at 50hz for static surveillance and up to 100hz at 1080P for high-speed target tracking. Whether you're scanning a distant nest or pursuing a fast-moving quarry, the result is zero blur, maximum clarity, and unwavering precision. An external IR torch can be added for enhanced nocturnal range.

Weighing just 450g and 25% slimmer than conventional optics, the A40E’s 30mm magnesium alloy Tube integrates seamlessly with any air rifle system. This rugged yet lightweight design supports long treks across farmland and tight maneuvering in dense cover. The compact form factor is balanced for agility without sacrificing durability or optical performance.

Equipped with a 0.49-inch OLED display (1920×1080), continuous zoom up to 20.5x, and smart day/night/auto modes, the A40E brings tactical flexibility to any engagement. Record every shot with built-in audio and 32GB EMMC storage. Its dual-power system—internal lithium and external 18650 batteries—delivers up to 7.5 hours of uninterrupted operation in field conditions.

• 4K CMOS Sensor: Captures ultra-high-definition detail for accurate identification and target acquisition in any lighting condition.

• Dynamic Framerate: Switches between 50fps and 100fps for stable surveillance and fluid motion tracking.

• Lightweight & Slim: Magnesium alloy build is 25% slimmer and weighs just 45g for maximum mobility.

• Dual Power System: Internal lithium and external 18650 batteries offer up to 7.5 hours continuous runtime.

• Day/Night Versatility: Five visual modes adapt to any environment—Day, Night, Auto, Green, and Yellow.

• ————————————————-

  4K UHD resolution for unmatched clarity and target detail.

• Compact 30mm tube fits all standard air rifles.

• OLED display delivers sharp, high-contrast imagery.

• Recoil-activated recording with onboard audio.

• Continuous and stepped digital zoom up to 20.5x.

• Enhanced low-light performance with external IR support.

• Built-in 32GB storage for video and image capture.

• Rugged magnesium alloy body for field durability.

• Multiple vision modes for changing light conditions.

• Fast, blur-free rendering during target movement.

With an advanced 4K UHD detector and a 40 mm/F2.0 lens, the Digital Day & Night Vision Scope ALPEX 4K Lite
A40E delivers an 18.7 m @ 100 m field of view, offering exceptional clarity for pest control and small game hunting,
day or night. Enhance nighttime performance with an extra IR torch for even greater precision.

Key Feature
● 3840 × 2160 resolution CMOS detector
● 40 mm lens with F2.0 aperture
● 1920 × 1080 resolution 0.49-inch OLED display (square & round optional)
● Supports Day/Night/Auto/Green/Yellow mode
● Supports recoil-activation recording with audio, built-in EMMC (32 GB)
● Up to 7.5 hours of continuous operation
● Replaceable and rechargeable external battery

Specification
Main
Max. Resolution 3840 × 2160
Frame Rate 50 Hz (4K), 100 Hz (1080P)
Lens (Focal Length) 40 mm, F2.0
Detection Range Day: 800 m
Min. Focusing Distance 2 m
Magnification

3.5× to 20.5× (5.8×)
Support continuous zooming and 0.5×, 1×, 2×, 3×, 4× optional step value

Field of View 10.7° × 6.1° / 18.7 m × 10.1 m @ 100 m
Image Display
Display 1920 × 1080, 0.49 inch, OLED
Image Mode Day, Night, Auto, Green, Yellow
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -5 D to 5 D
System
Record Video On-board Video Recording
Record Video Resolution 1920 × 1080
Capture Snapshot Yes
Audio Recording Yes
Recoil-activation Recording Yes
Standby Mode Yes
Storage Built-in EMMC (32 GB)
PIP Yes
Freeze Zeroing Yes
Zeroing Profiles 5
Max. Recoil 1000 g/0.4 ms
Hotspot Yes
Ballistic Calculation NA
Click Value 1 click = 1cm @ 100 m
Power Supply
Battery Type

One Rechargeable Lithium Battery (Internal), One Replaceable and
Rechargeable18650 Battery (External)

Battery Operating Time 7.5 hours of Continuous Running (@25°C, Hotspot off)
Power Supply

5 VDC/2 A, USB Type-C Interface
Only internal battery support direct charge

General
Mounting Standard 30 mm

Protection Level IP67
Working Temperature -30°C to 55°C (-22°F to 131°F)
Dimension 280.7 mm × 86.1 mm × 57.3 mm (without eyepiece)
Weight 450 g without External Battery
