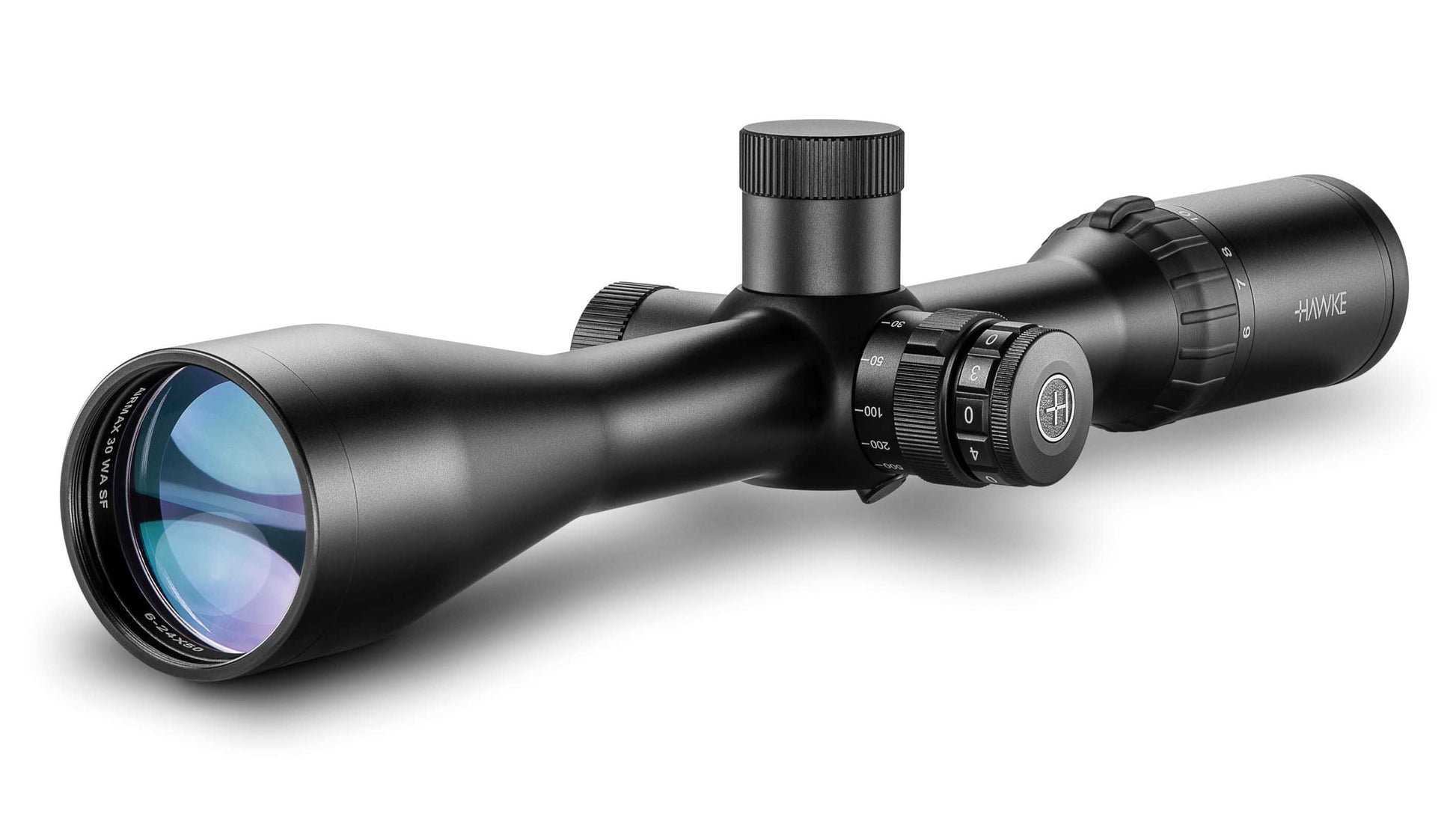

Airmax 30 WA SF 6-24x50 AMX IR

Airmax 30 WA SF 6-24x50 AMX IR

Regular price £409.00 GBP
Regular price Sale price £409.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Line Drawing

Magnification
6 - 24x
Reticle
AMX IR
Optical System
System H2
Objective Lens
50mm
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels (Red)

Field of View
20.3 - 5.1ft @100yds
6.8 - 1.7m @100m
Field of View
3.9 - 1°
Eye Relief
4in
102mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.33 - 0.08″
8.3 - 2.1mm
Click Value
1/10 MRAD
Elevation Turret Clicks (max)
17 MRAD
Windage Turret Clicks (max)
17 MRAD

Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers

Length
14.9in
378mm
Weight
27.2oz
770g

Turret Type (Elevation)
Target. Capped. Resettable

Turret Type (Windage)
Target. Capped. Resettable
Illumination Control
Stepped Rheostat with Off Positions In-between
